Product details

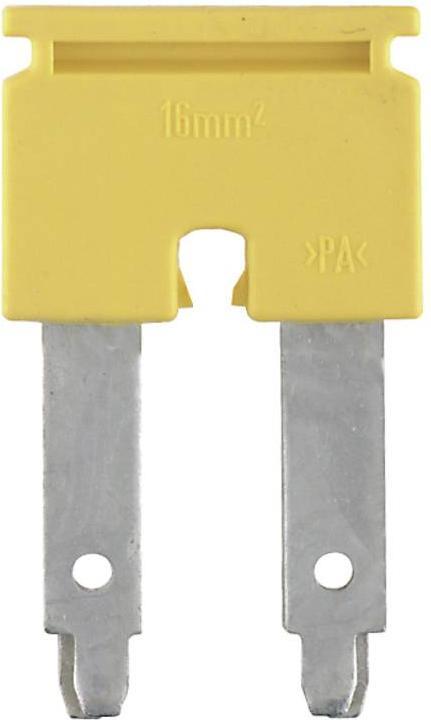

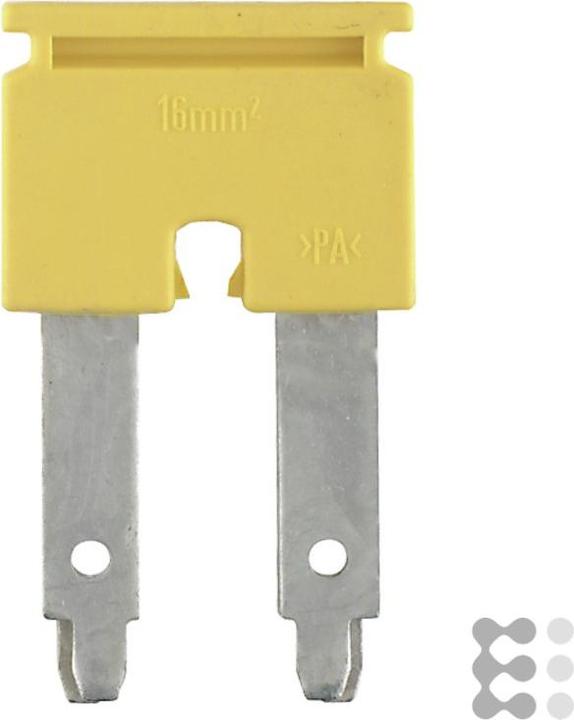

The Weidmüller ZQV 16/2 cross connector is a high-quality electronic accessory specifically designed for use in terminal blocks. With a robust construction and a variety of safety features, this cross connector is ideal for potential distribution and signal transmission in electrical installations. It offers an insulated design with touch protection, enhancing safety during use. The cross connector is rated for a maximum operating temperature of 130 °C and a minimum operating temperature of -60 °C, making it suitable for various environments. With a rated current of 76 A and a rated voltage of 400 V, it meets performance requirements for industrial applications. The mounting is plug-in, allowing for easy installation. The cross connector is available in a striking yellow color, which facilitates easy identification in the control cabinet.

  • Explosion-proof design according to standard "Ex e"
  • Flammability class UL 94 V-0
  • Compatible with Klippon Connect terminal blocks
  • Suitable for a wide range of applications in electrical engineering
  • Plug-in mounting for easy installation.

Key specifications

Colour
Yellow
number of poles
2
Items per sales unit
25x

General information

Item number
17996189
Manufacturer
Weidmüller
Category
Cable joints
Manufacturer no.
1739690000
Release date
20.12.2021
External links
Manufacturer's site (de)

Colour

Exact colour description
Yellow
Colour
Yellow

Material

Material
Wemid

Cable connection Properties

number of poles
2

Origin

Country of origin
Czech Republic

Voluntary climate contribution

CO₂ emissions
0.06 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
Alternative (alias)=ZQV 16/2, Colour accessories=yellow, Conformity with standards=UL Listed, Cross connector, Flammability class = UL 94 V-0, Height=20.6 mm, Length=35.1 mm, max.=130 °C, min.=-60 °C, Mounting shank=cross connector, Operating temperature, Pole=2, Suitable for=Klippon Connect terminal block, Type=1739690000
Items per sales unit
25x

Product dimensions

Length
35.10 mm
Width
5.20 mm
Height
20.60 mm
Weight
9.90 g
