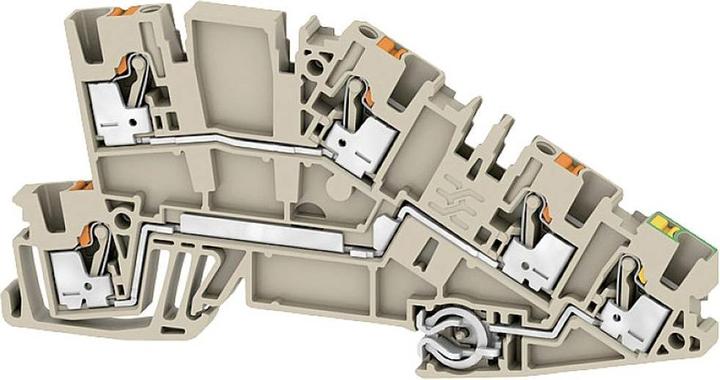

Weidmüller AITB 2.5 L-L-PE

The Weidmüller installation terminal AITB 2.5 L-L-PE is a high-quality plug terminal designed for energy distribution in building installations. It allows for a reliable and secure connection of electrical conductors and is suitable for various conductor cross-sections. The terminal supports both fine-stranded and solid conductors and offers a maximum connection capacity of up to 4 mm². With a rated current of 24 A and a rated voltage of 250 V, it is suitable for a wide range of applications in electrical engineering. Installation is straightforward on a TH35 DIN rail, making it easy to set up in control cabinets. The insulating body is made of thermoplastic, which withstands a high operating temperature range of -60 to 130 °C and meets the flammability class V0 according to UL 94. These features make the AITB 2.5 L-L-PE a reliable choice for professional installations.

• Suitable for conductor cross-sections from 0.5 to 4 mm²
• Maximum rated current of 24 A
• Operating temperature range of -60 to 130 °C
• Mounting on TH35 DIN rail
• Insulating body made of thermoplastic material with flammability class V0.
