Weidmüller A2T 2.5

Ratings
BrandMore from Weidmüller
Delivered between Wed, 15.4. and Tue, 21.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

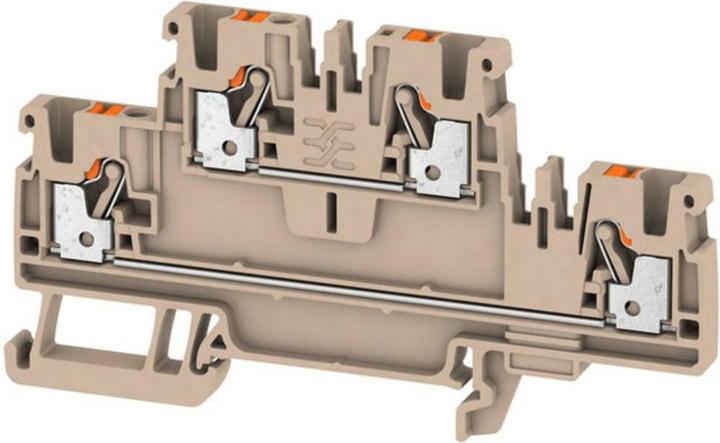

Weidmüller Terminal Block A2T 2.5

Manufacturer: Weidmüller
Description: Terminal block 0.14-2.5 mm², beige
Type: A2T 2.5

Connectable conductor cross-section for fine-stranded without ferrule: 0.5..4 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.5..4 mm²
Connectable conductor cross-section for single-stranded: 0.5..2.5 mm²
Connectable conductor cross-section for multi-stranded: 0.5..4 mm²

Rated current In: 24 A
Rated voltage: 800 V
Electrical connection type 1: Plug connection
Electrical connection type 2: Plug connection
Number of levels: 2
Number of terminal points per level: 2
Suitable for conductor material: Copper
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0
Width: 5.1 mm
Height: 90 mm
Depth: 50.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: beige
Internally bridged levels: no

Weidmüller Terminal Block A2T 2.5: additional details
Multi-level terminal block for connecting or linking conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-plated copper ensures optimal conductivity. Space-saving design.
EAN: 4050118462838.

Key specifications

Colour
Beige
number of poles
4
Items per sales unit
50x

General information

Item number
10046476
Manufacturer
Weidmüller
Category
Cable joints
Manufacturer no.
1547610000
Release date
1.11.2018

Colour

Exact colour description
Beige, Grey
Colour
Beige

Material

Material
Wemid
Material group
Metal

Cable connection Properties

number of poles
4

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
50x

Product dimensions

Length
50.50 mm
Width
5.10 mm
Height
90 mm
