Warema 2031050

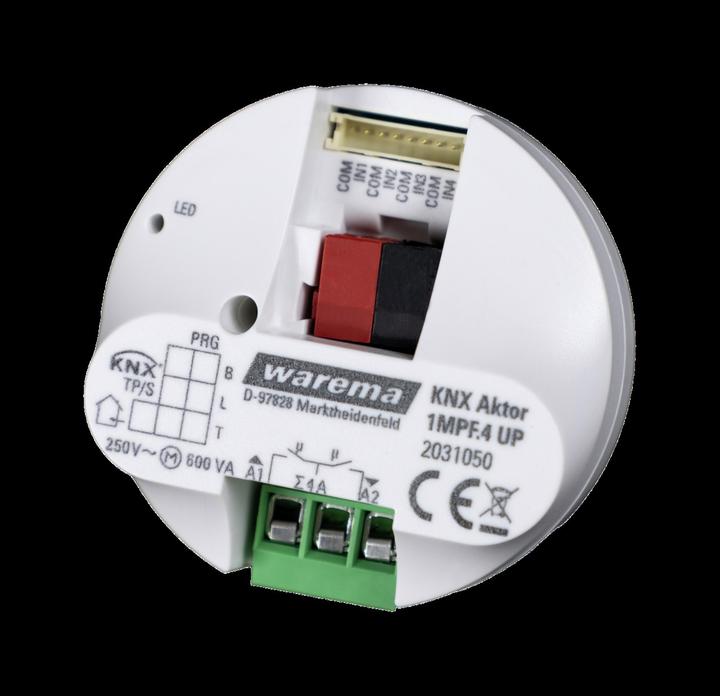

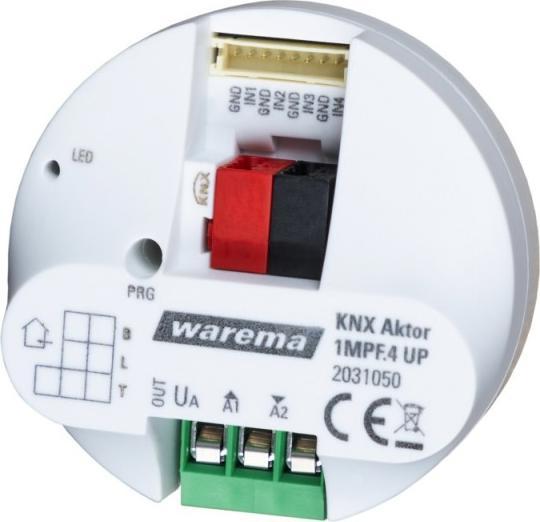

Warema Sonnen KNX Actuator 2031050

Manufacturer: Warema Sonnen
Designation: KNX Actuator 1MPF.4 UP
Type: 2031050
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: Flush-mounted
With Bus Coupling: yes
With LED Display: yes
Local/Manual Operation: no
Number of Input Channels: 4
Number of Switching Inputs: 2
Number of Inputs: 4
Max. Switching Current: 5 A
Ohmic Switching Current: 5 A
Max. Switching Power: 150 VA
Input Voltage: 230 V
Suitable for C-Load: no
Number of Output Channels: 2
Max. Number of Switching Outputs: 2
Max. Number of Shutter Outputs: 1
Output Power: 150 VA
Switching Function: yes
Rated Current: 5 A
Rated Operating Voltage: 230 V
External Query Voltage Required: no
Different Phases Connectable: no
Type of Current: AC
Protection Class (IP): IP20

With the KNX Actuator 1MPF.4 UP in a flush-mounted housing, up to 2 potential-free output channels (2x consumers or 1x sun protection) can be individually controlled and parameterized. Four integrated binary inputs allow for the connection of conventional (shutter) buttons or window contacts, which are freely available on the bus or as actuator buttons. The five safety objects with different priorities and cyclical monitoring can be freely assigned, and the response to safety objects can be selected. The actuator allows for the integration of external automation. This includes the separation of manual and automatic operation. Received telegrams can be stored and processed later during automatic shutdown. The actuator features 8 scene objects per output. Status of fabric height, status manual/automatic, status drive in motion, and status slat angle can be sent or read out. Installation is done in a device box: diameter 60 mm, recommended depth: 42 mm.
