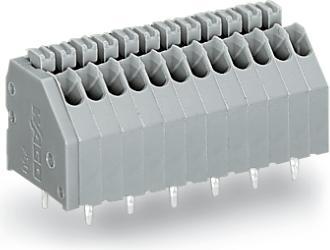

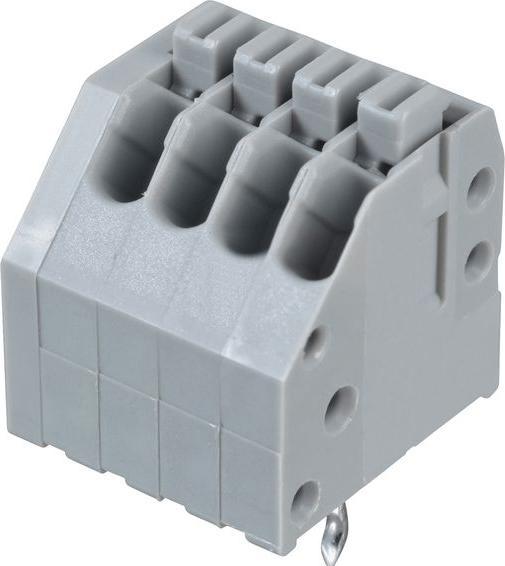

Wago Wire-to-board terminal block, push-through mounting, 2.5mm pitch, 45 °, spring-loaded terminal, 4

The Wago wire-to-board terminal block is a highly advanced plug connector designed for through-hole mounting. With a pitch of 2.5 mm and a 45° orientation, it offers a compact and efficient solution for connecting printed circuit boards. This spring clamp allows for easy and reliable connection of wires with a diameter of 0.14 mm² to 0.52 mm² (AWG 24 to 20). The terminal is suitable for operating temperatures ranging from -60 °C to 105 °C and ensures a rated voltage of up to 160 V and a rated current of 4 A. It meets various standards and is classified in the flammability class UL 94 V-0, making it a safe choice for various applications.

• Operating temperature range from -60 °C to 105 °C
• Rated voltage of 160 V and rated current of 4 A
• Suitable for wire diameters of 0.14 mm² to 0.52 mm² (AWG 24 to 20)
• Meets standards such as CCA, CSA, DNV, and UL Recognized
• Flammability class UL 94 V-0 for enhanced safety.
