Wago TopJob

Ratings
BrandMore from Wago
Delivered between Wed, 6.5. and Thu, 21.5.
More than 10 pieces in stock at supplier
free shipping

Product details

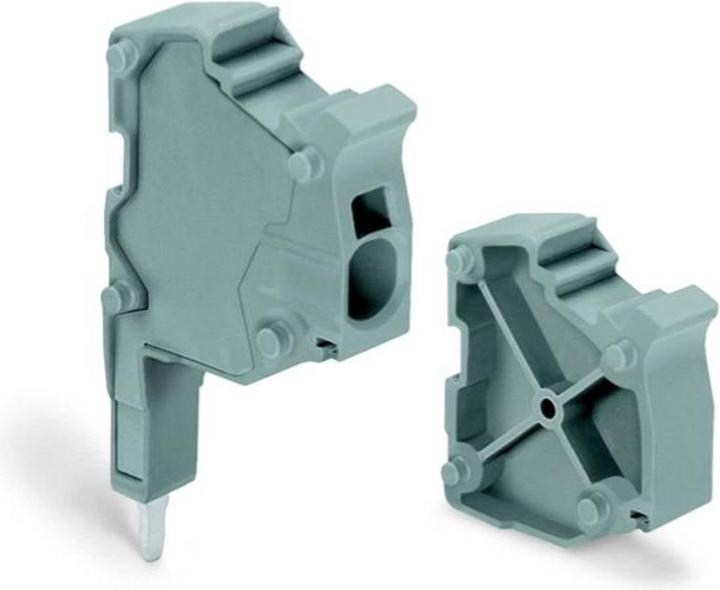

WAGO GmbH & Co. KG TopJob S Connector 2006-511

Manufacturer: WAGO GmbH & Co. KG
Designation: TopJob S Connector unencased
Type: 2006-511
Design: Pin insert
Connection cross-section: 0.5...4 mm²
Connection cross-section for fine-stranded without ferrule: 0.5...6 mm²
Connection cross-section for fine-stranded with ferrule: 0.75...4 mm²
Connection cross-section for solid conductors: 1...6 mm²
Connection cross-section for multi-stranded: 0.5...4 mm²
Rated current In: 32 A
Rated voltage: 500 V
Total number of poles without grounding contact: 1
Electrical connection type: Spring force connection
Width: 7.5 mm
Stackable: yes
Number of poles: 1

WAGO GmbH & Co. KG TopJob S Connector 2006-511: additional details
Modular TopJob S connector stackable for bridge slots, single-pole, 6.00 mm², gray.

Key specifications

Colour
Grey
Suitable for cable cross-section
6 mm²
number of poles
1
Items per sales unit
50x

General information

Item number
34364558
Manufacturer
Wago
Category
Cable joints
Manufacturer no.
2006-511
Release date
17.5.2023

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Polyamide
Material group
Plastic

Cable connection Properties

Suitable for cable cross-section
6 mm²
number of poles
1

Voluntary climate contribution

CO₂ emissions
0.02 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
50x

Product dimensions

Length
7.50 mm
Width
7.50 mm
Height
46 mm
Weight
4.33 g
