Product details

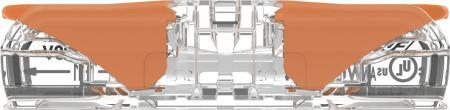

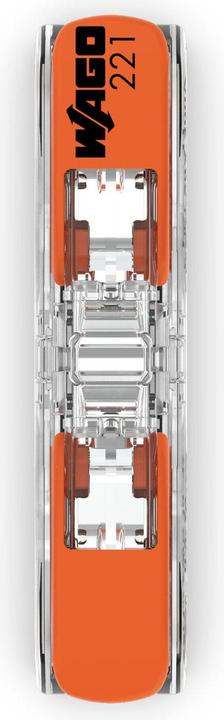

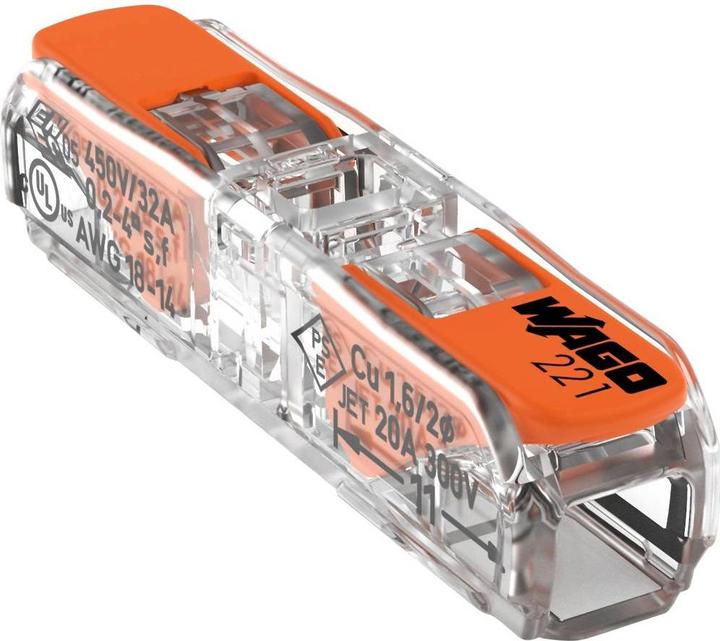

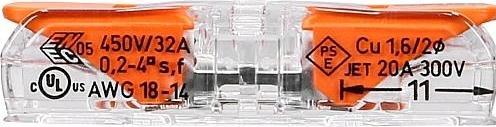

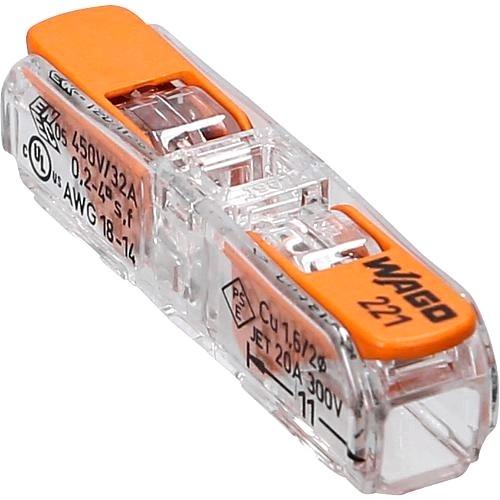

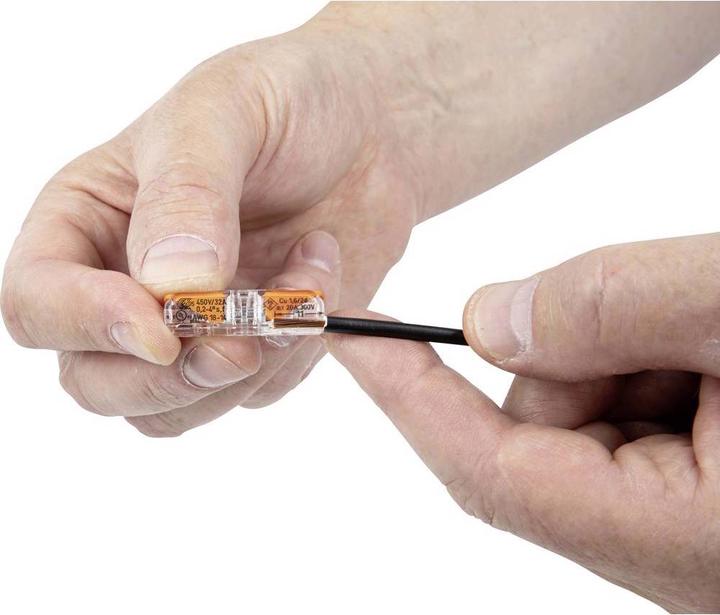

Through connector of the 221 series. Slim design and a tool-free conductor connection. A thoroughly directional conductor connection for all types of conductors from 0.2 to 4 mm² - unbeatably simple, fast

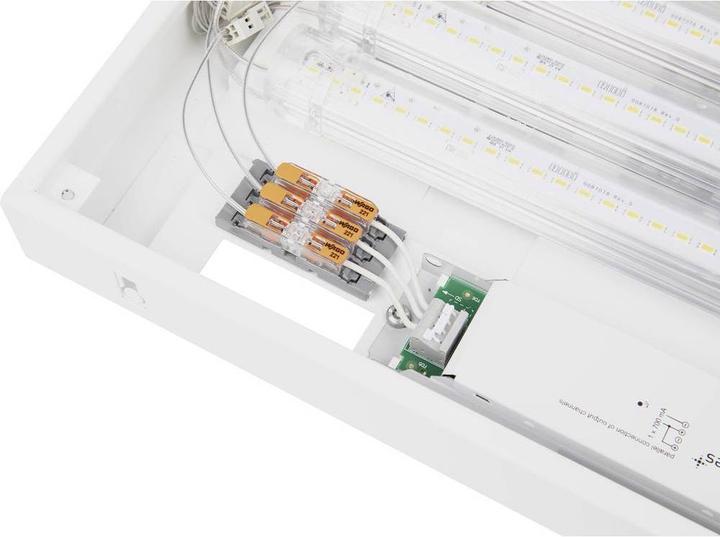

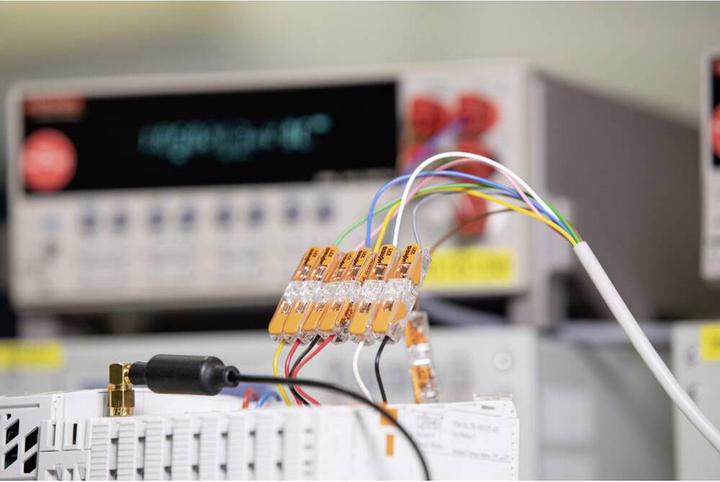

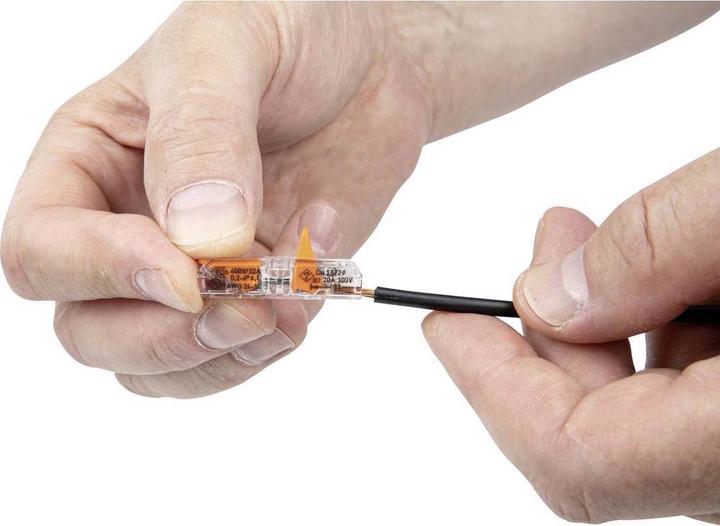

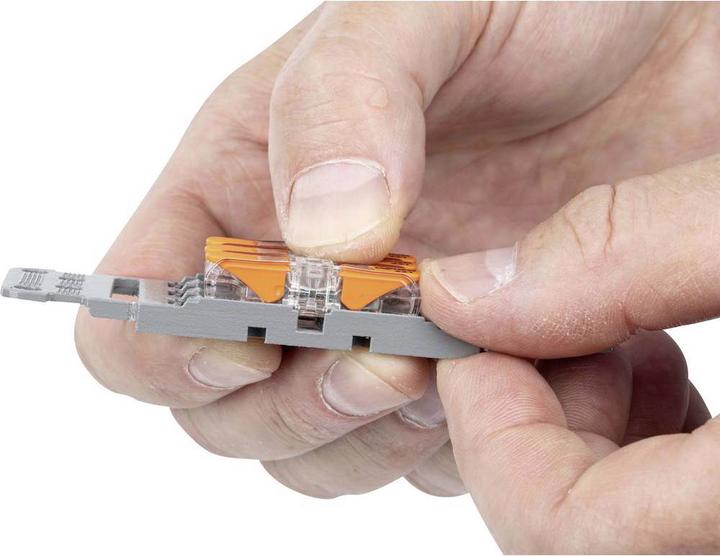

and safe - that's what the new 221 Series feed-through connector with lever stands for. It combines all the familiar advantages of the 221 Series terminal blocks in a slim design: a universal conductor connection that is completely tool-free thanks to lever technology and offers visibly secure conductor contacting. Wherever multiple poles are required, adapters offer the user individual degrees of freedom for the modular, flexible assembly of up to 5 position-fixed poles in one adapter - regardless of whether with or without strain relief, on mounting rails with snap-in feet, for screwing, gluing, tethering or hanging. As a universal connection device, the 221 Series feed-through connector thus not only improves familiar installation applications with low space requirements, but also opens up a wide range of new ones: for example, laboratory and test setups as well as production test fields, the connection of lights in false ceilings, the extension of loudspeaker cables, but also junction boxes in industrial applications. The feed-through connector is available in two versions, both of which have both EN and UL approvals: the version with a transparent cover for conductor cross-sections from 0.2 to 4 mm² for all common applications, and the version with a white cover for the extended connection range with the AWG 12 conductor, which is mainly used in North America. Positionally fixed and multi-pole:. The adapters for the 221 Series feed-through connector provide users with individual degrees of freedom for the modular, flexible assembly of up to 5 position-fixed poles in one adapter - regardless of whether with or without strain relief, on mounting rails with snap-in feet, for screwing, gluing, tethering or hanging. As a universal connection device.
| Item number | 17828641 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 221-2411 |
| Release date | 2/21/2022 |
| Sales rank in Category Cable joints |
| Exact colour description | Orange, Transparent |
| Colour group | Orange, Transparent |
| Specific material description | Plastic |
| Material group | Plastic |
| Cable connection type | Jointing clamp |
| Plug type | Flat |
| Protection type (IP code) | IP20 |
| Scope of delivery | 1 piece |
| Items per sales unit | 60 x |

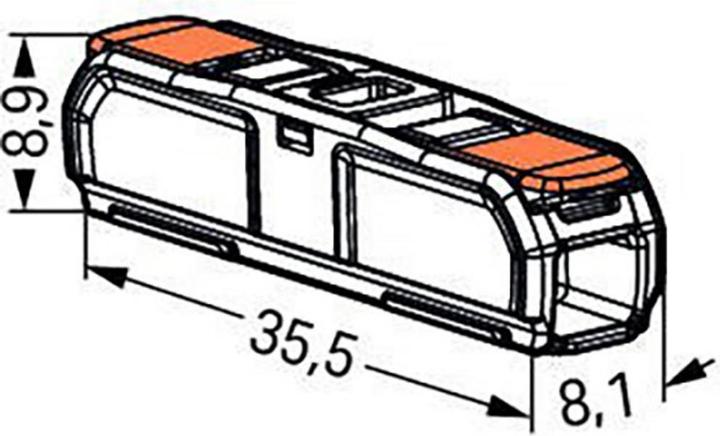

| Length | 35.50 mm |
| Width | 8.10 mm |
| Height | 8.90 mm |
| Weight | 2.30 g |
| Length | 11.20 cm |
| Width | 9.10 cm |
| Height | 4.20 cm |
| Weight | 166 g |
Specifications may include unverified machine translations.
