Wago LON-FTT interface

Ratings
BrandMore from Wago
Delivered between Mon, 27.4. and Mon, 4.5.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Product details

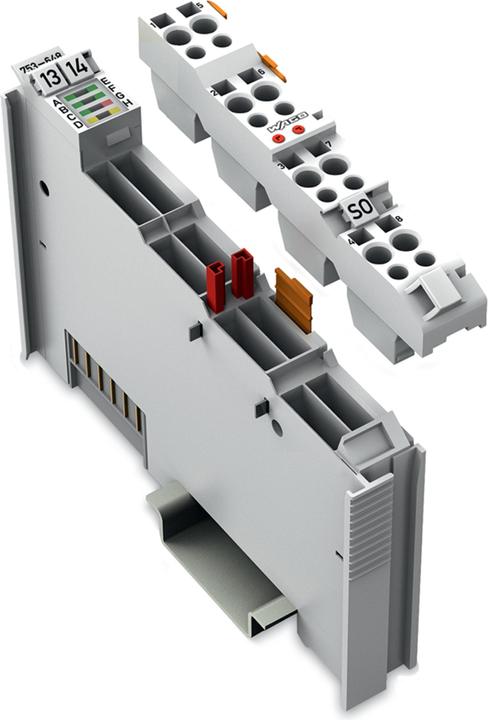

LON-FTT Interface

The LON-FTT module 753-648 is compliant with the ISO/IEC 14908 standard. This 12 mm wide module is used for LON connectivity to controllers and I/O modules of the 750 series (BACnet, KNX, EnOcean, DALI, MODBUS, and others). It functions as a fully-fledged and flexible LON device in a LonWorks FT or LP network. The network variable interface allows for the definition of 249 network variables of any type and supports LonMark objects and Configuration Properties.

The LON configurator is used to define the LON network interface. This comprehensive and user-friendly software tool is part of the WAGO-I/O-PRO software. Once the interface is defined in the LON configurator, representations of the respective interface are automatically created in the IEC-61131-3 program for easy reuse.

The programming software WAGO-I/O-PRO is used for programming the fieldbus nodes. WAGO supports programming with a comprehensive IEC-61131-3 library, featuring simple blocks for implementing complex control and regulation applications.

A maximum of 2 modules should be connected to a controller. However, the number of modules depends on the memory requirements of the IEC application and the type of controller. The module is powered from the module connection via 24V measuring contacts.

Key specifications

Items per sales unit
1x

General information

Item number
34229884
Manufacturer
Wago
Category
Cable joints
Manufacturer no.
753-648
Release date
17.5.2023

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Safety

Protection type (IP code)
IP20

Scope of delivery

Scope of delivery
LON®-FTT interface
Items per sales unit
1x

Product dimensions

Length
69 mm
Width
12 mm
Height
100 mm
