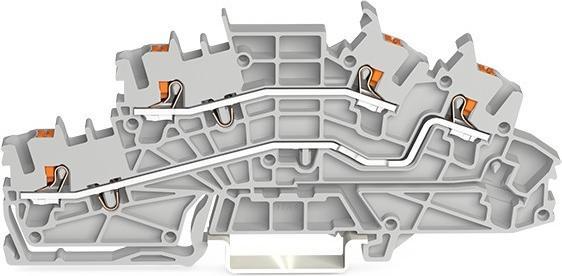

Wago Installation floor terminal

Ratings
BrandMore from Wago
Currently out of stock
Free shipping starting at 50.–

Product details

The installation terminal block from WAGO GmbH & Co. KG is a reliable solution for electrical connections in installations. With a connection cross-section of 0.25 to 4 mm² for fine-stranded and 0.75 to 4 mm² for solid wires, it offers flexibility for various applications. The terminal is designed for a rated current of 20 A and a rated voltage of 400 V, making it suitable for demanding electrical systems. The cage clamp connection allows for easy and secure connections, while the thermoplastic insulating material supports an operating temperature of up to 105 °C. The terminal is designed for mounting on a TH35 DIN rail and has a compact design that enables space-saving installation.

  • Flexible connection options for various cable cross-sections
  • High rated current and voltage capacity
  • Easy installation on TH35 DIN rail
  • Robust thermoplastic insulating material for high operating temperatures.

Key specifications

Colour
Grey
Suitable for cable cross-section
2.50 mm²
number of poles
3

General information

Item number
36794652
Manufacturer
Wago
Category
Cable joints
Manufacturer no.
2203-6642
Release date
28.6.2023

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Thermoplastic resin
Material group
Plastic

Cable connection Properties

Suitable for cable cross-section
2.50 mm²
number of poles
3

Product dimensions

Length
46.50 mm
Width
5.20 mm
Height
109.70 mm
