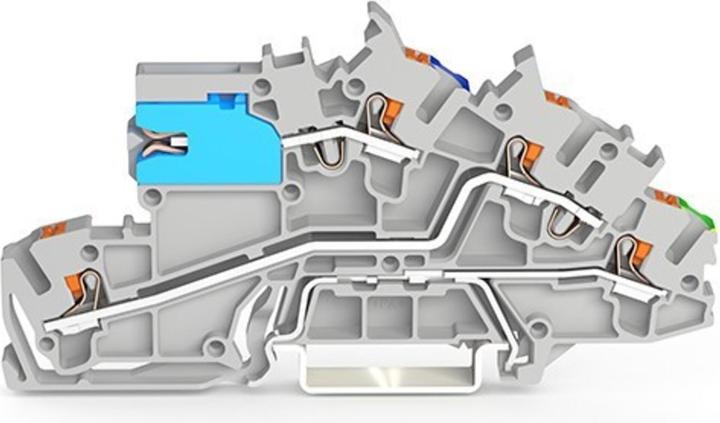

Wago Installation floor- 2203-7641 terminal,with handle,2,5 mm²,grey

WAGO GmbH & Co. KG installation terminal block 2203-7641

Manufacturer: WAGO GmbH & Co. KG
Designation: Installation terminal block 2.5 mm² with handle
Type: 2203-7641
Connectable conductor cross-section fine-stranded without end sleeve: 0.25 to 4 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.75 to 2.5 mm²
Connectable solid conductor cross-section: 0.75 to 4 mm²
Connectable stranded conductor cross-section: 0.25 to 2.5 mm²
Rated current In: 29 A
Rated voltage: 250 V
Electrical connection type 1: Spring-loaded connection
Electrical connection type 2: Spring-loaded connection
Number of potentials: 3
Mounting type: Top-hat rail TH35
Material of the insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 5.2 mm
Height: 95.6 mm
Depth: 46.6 mm
End plate required: Yes
Basic colour: Grey
With PE function: Yes
With N-disconnect slide: Yes
N-function possible: Yes

WAGO GmbH & Co. KG installation floor terminal block 2203-7641: further details
Installation floor terminal block with pusher 2.5 mm² with N-disconnect slide NT/L/PE ground floor green-yellow
Push-in CAGE CLAMP® 2.50 mm² grey.
