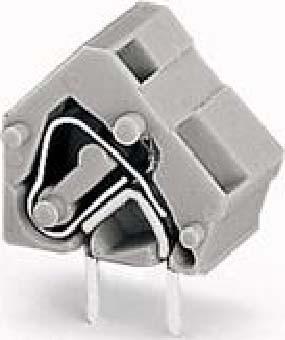

Wago GDS single clamp

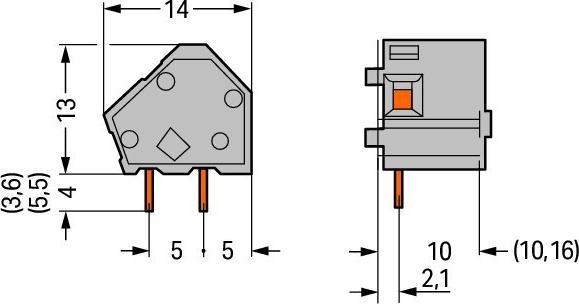

WAGO GmbH & Co. KG GDS single terminal block 236-767 Manufacturer :WAGO GmbH & Co. KG Designation :GDS single terminal block 10mm Type :236-767 Height :13 mm Number of electrical connections :1 Number of tiers :1 Grid dimension of connections :10 mm Angle PCB/conductor connection :45°/135° (angled upwards) Rated current In :24 A Rated voltage :1000 V Rated impulse voltage :8 kV Overvoltage category :III Degree of pollution :2 Type of conductor connection :Spring-cage connection Connectable conductor cross-section solid :0.08..2.5 mm² Connectable conductor cross-section flexible with ferrule :0.25..1.5 mm² Connectable conductor cross-section flexible without ferrule :0.08..2.5 mm² Connectable conductor cross-section stranded :0.08...2.5 mm² Type of connection PCB :solder connection Material of connection surface :tin Length of pin :4 mm Material of insulating body :thermoplastic Housing colour :green Flammability class of insulating material according to UL 94 :V0 Operating temperature :-60...105 °C Type of PCB fastening :terminal contact Type of fastening :solder Type of banding :without WAGO GmbH & Co. KG GDS single terminal block 236-767: further details Joinable PCB terminal block 2.5 mm² pitch 10/10.16 mm 1-pole CAGE CLAMP® bridging option 2.50 mm² light green , EAN: 4044918775007.
