Wago Display module

Ratings
BrandMore from Wago
Delivered between Fri, 17.4. and Wed, 22.4.
5 pieces in stock at supplier
free shipping

Product details

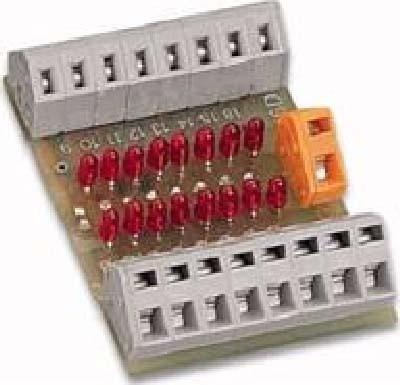

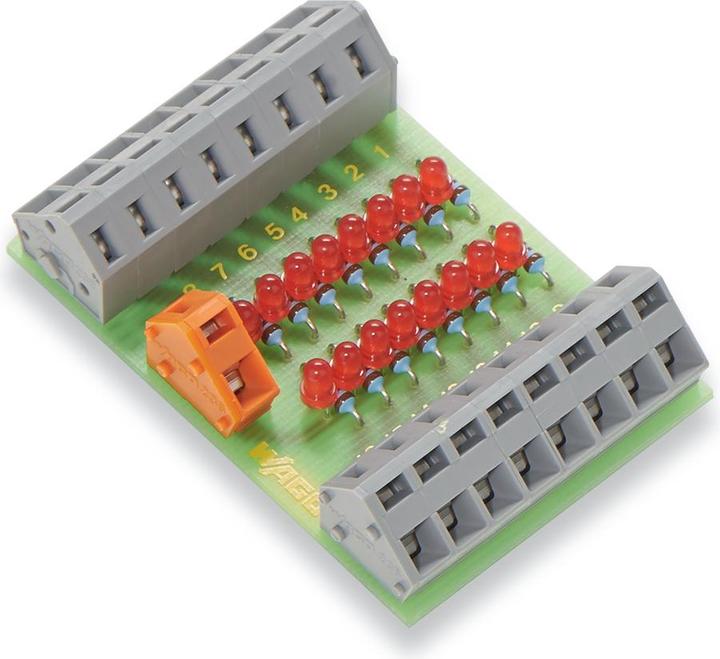

WAGO GmbH & Co. KG Display Module 289-201

Manufacturer: WAGO GmbH & Co. KG
Designation: Display module 24V
Type: 289-201
Explosion-tested version "Ex e": No
Connectable conductor cross-section fine stranded without ferrule: 0.08 - 2.5 mm²
Connectable conductor cross-section finely stranded with ferrule: 0.25 - 1.5 mm²
Connectable conductor cross-section solid: 0.08 - 2.5 mm²
Connectable conductor cross-section stranded: 0.08 - 2.5 mm²
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminal points per level: 8
Levels internally bridged: No
Mounting type: Other
Insulator material: Thermoplastic
Operating temperature: -25 to 40 °C
Flammability class of the insulating material according to UL 94: V0
Width: 45.5 mm
Height: 65.5 mm
Depth: 32 mm
End plate required: No
Colour: Grey
Component type: LED

WAGO GmbH & Co. KG Display Module 289-201: Further details

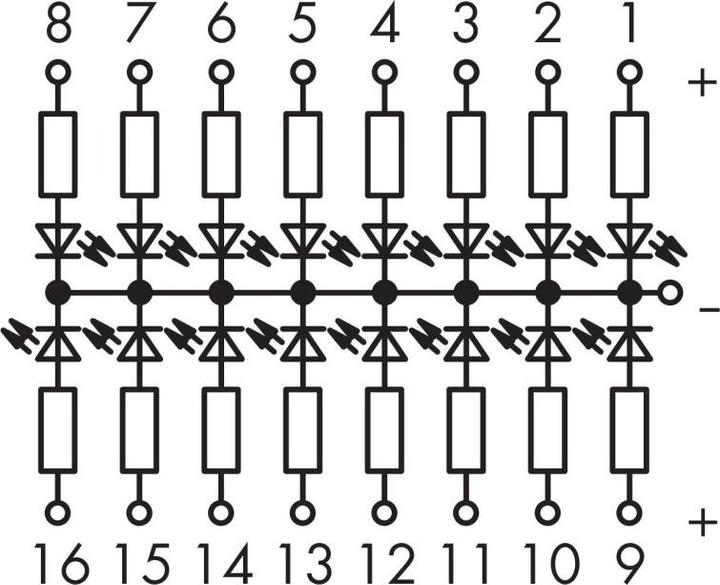

Component module with LED with 16 red LEDs with common cathode 2.50 mm², EAN: 4045454532109.

Key specifications

Colour
Grey
Suitable for cable cross-section
2.50 mm²
Items per sales unit
1x

General information

Item number
36752872
Manufacturer
Wago
Category
Cable joints
Manufacturer no.
289-201
Release date
28.6.2023

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Thermoplastic resin
Material group
Plastic

Cable connection Properties

Suitable for cable cross-section
2.50 mm²

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
16 red LEDs with common cathode, Component module with LED, Display module
Items per sales unit
1x

Product dimensions

Width
45.50 mm
Height
65.50 mm
