Wago Cable conversion current transformer

Cable Conversion Current Transformer
Primary Rated Current 250 A
Secondary Rated Current 5 A
Rated Power 1 VA
Accuracy Class 0.5

Short Description:
The compact split cable conversion current transformers are specifically designed for retrofitting in existing systems. Cable conversion current transformers are particularly useful in situations where the current path must not be interrupted. The accuracy of the cable conversion current transformer leads to particularly precise current measurements. The cable conversion current transformers can handle the specified rated power at the end of the cable. All transformers are equipped with color-coded cables. Two included UV-resistant cable ties ensure secure and easy installation.

Features:
Transformation ratios of primary 250 A and secondary 5 A.
No interruption of the measurement line.
Ideal for use in very small spaces.
Especially quick installation.

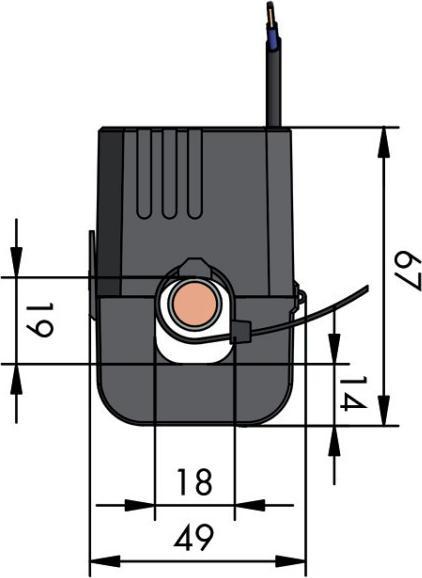

For use around insulated conductors up to Ø 18 mm.
Compact and hinged.
Color-coded connection cable 0.5 m.
