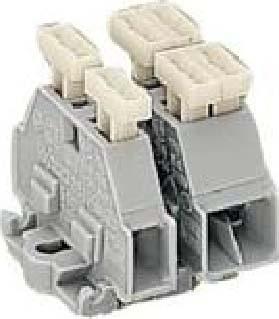

Wago 261-333/342-000

Ratings
BrandMore from Wago
Currently out of stock
Free shipping starting at 50.–

Product details

The WAGO 261-333/342-000 is a 4-wire terminal block designed for reliable cable connections. It features dual-side actuation and is equipped with a spring clamp connection that allows for easy and secure connection of conductors. This terminal block is suitable for various conductor cross-sections ranging from 0.08 to 2.5 mm², accommodating fine-stranded, single-stranded, and multi-stranded conductors. With a maximum rated current of 24 A and a rated voltage of 500 V, it is suitable for a wide range of applications in electrical engineering. The terminal block is made from halogen-free thermoplastic and offers an operating temperature range of -30 to 85 °C, making it ideal for use in diverse environments. Installation is achieved via a mounting flange that ensures secure fitting.

  • Dual-side actuation for easy handling
  • Spring clamp connection for secure conductor connection
  • Suitable for conductor cross-sections from 0.08 to 2.5 mm²
  • Operating temperature range of -30 to 85 °C
  • Halogen-free material for enhanced safety.

Key specifications

Colour
Grey
Suitable for cable cross-section
2.50 mm²
number of poles
1
Items per sales unit
50x

General information

Item number
34027586
Manufacturer
Wago
Category
Cable joints
Manufacturer No.
261-333/342-000
Release date
17.5.2023

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Thermoplastic resin
Material group
Plastic

Cable connection Properties

Suitable for cable cross-section
2.50 mm²
number of poles
1

Scope of delivery

Items per sales unit
50x

Product dimensions

Length
23.30 mm
Width
10 mm
Height
28.10 mm
