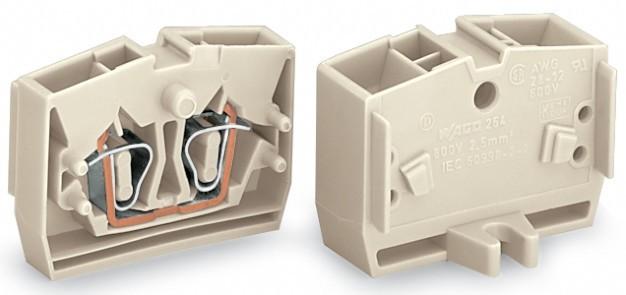

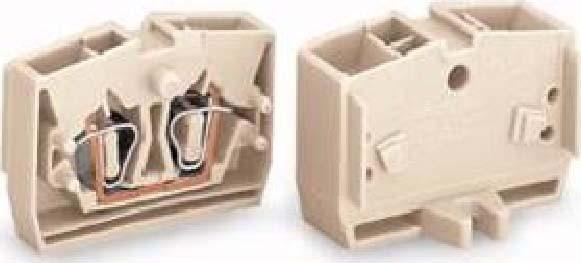

Wago 2-wire Ex end terminal

WAGO GmbH & Co. KG 2-wire Ex end terminal with 264-130 Manufacturer :WAGO GmbH & Co. KG Designation :2-wire Ex end terminal with flange Type :264-130 Explosion-tested version "Ex e" :yes Connectable conductor cross-section fine-stranded without ferrule :0.5..2.5 mm² Connectable conductor cross-section finely stranded with ferrule :0.75..1.5 mm² Connectable conductor cross-section solid :0.5..2.5 mm² Connectable conductor cross-section stranded :0.5...2.5 mm² Rated current In :23 A Rated voltage :690 V Electrical connection version 1 :Spring-cage connection Electrical connection version 2 :Spring-cage connection Number of poles :1 Number of terminals per pole :2 Mounting type :other Insulating body material :Thermoplastic Operating temperature :105 °C Flammability class of insulating material to UL 94 :V0 Halogen-free :yes Width :6 mm Height :32 mm Depth :22.1 mm End plate required :yes Colour :grey Transparent :no WAGO GmbH & Co. KG 2-wire Ex end terminal with 264-130: Further details 2-wire end terminal without push-button suitable for Ex e II applications with fixing flange 1-pole for screw fixing and similar. Mounting types Mounting hole Ø 3.2 mm 2.5 mm² CAGE CLAMP® 2.50 mm² light grey , EAN: 4044918415057.
