Votronic 5330 Info Panel Pro

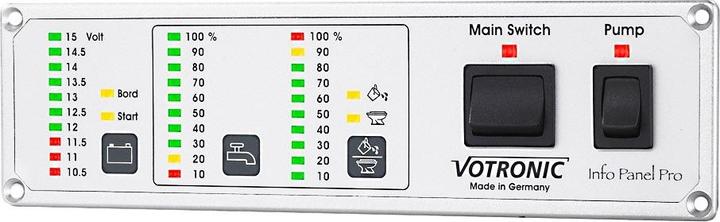

The Votronic Info Panel Pro (MPN 5330) for 12V systems is a convenient display and control panel and has been specially developed for use in motorhomes. It performs the most important control and switching tasks and offers direct monitoring of fresh water, waste water and faeces tanks, as well as the on-board and starter battery. It is also equipped with a main battery switch and a main pump switch for the fresh water supply.

On the left-hand side, several LEDs indicate the current battery voltage in a range from 10.5V to 15.0V. If the voltage is too low, this is signalled by red LEDs. At the touch of a button, you can switch between the voltage display of the on-board and starter battery or deactivate the display.

The Info Panel Pro has two additional displays for monitoring tanks, which are represented by light bars with 10 LEDs each. The displays work continuously, as intermediate levels are displayed with variable brightness and trends can therefore be recognised immediately. This gives you a complete overview of all filling and emptying processes. The display can be switched on and off at the touch of a button and switches off again automatically after approx. 10 minutes. The tank display on the right-hand side of the Info Panel Pro can also be switched to two measurement inputs (e.g. waste water and faeces tank) as standard.

The Info Panel Pro is equipped with integrated protection against reverse polarity and overload. The labelled connections for 6.3 mm flat plugs (power connections) and screw terminals (signal connections) are located on the rear.

To make installation easier for you, you also receive a drilling template with the Info Panel Pro. Thanks to the low installation depth of just 15 mm, the device can be installed almost anywhere.

Scope of delivery:

1v Votronic Info Panel Pro 5330, operating instructions.
