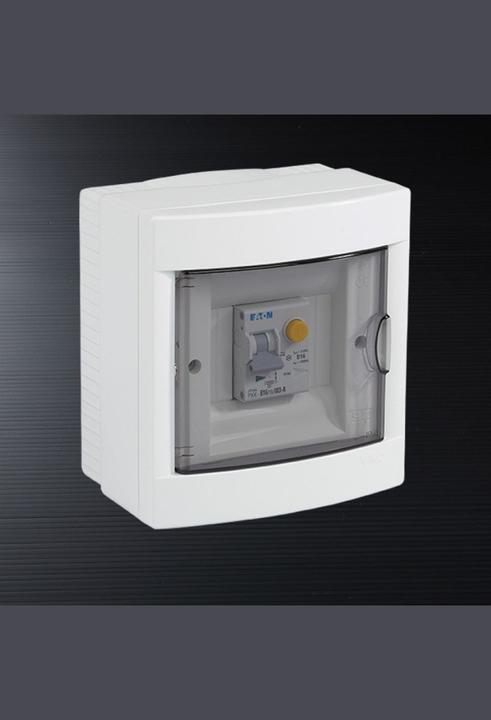

Votronic 2152 Residual current operated protective device RCBO 16-30
Supplied by
free shipping
The Votronic RCBO 16-30 (MPN 2152) is a residual current device for personal protection, featuring a 1+N-pole circuit breaker and an integrated RCD for optimal protection of the 230 V system in vehicles.
The RCBO 16-30 is designed for installation in motorhomes and other vehicles and should be installed near the 230V connection.
Technical features at a glance:
With integrated functional testing.
Press the yellow test button while the 230 V operating voltage is applied. The on/off switch must trip and move to the lower tilt position. The power supply is interrupted, and the on/off indicator will be displayed in green. By lifting the on/off switch, the power supply is restored, and the on/off indicator is highlighted in red. The function test should ideally be performed once a month.
Delivery includes:
1x Votronic 2152 residual current device RCBO 16-30
1x Installation and operating manual
1x Sticker for functional testing.
Circuit breaker type | Fault current circuit breaker |
Length | 100 mm |
Width | 140 mm |
number of poles | 2 |
Item number | 33444848 |
Manufacturer | Votronic |
Category | Residual-current device |
Release date | 17.5.2023 |
Sales rank in Category Residual-current device | 104 of 28365 |
Circuit breaker type | Fault current circuit breaker |
number of poles | 2 |
Tripping characteristic | B |
Rated current | 16 A |
Rated voltage | 230 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 230 V |
Residual current (rated differential current) | 0.03 A |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 140 mm |
Height | 140 mm |
Weight | 470 g |
Length | 17.20 cm |
Width | 15.60 cm |
Height | 12.20 cm |
Weight | 550 g |
