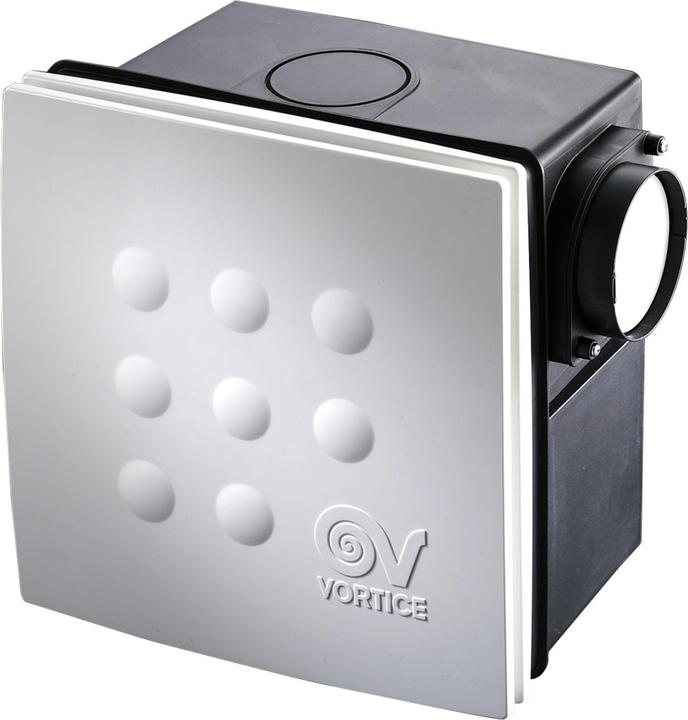

Vortice Quadro Super EP AC THCS UP shaft fan up to 285 m³/h

The Quadro Super EP AC THCS UP duct fan from Vortice is a powerful solution for effective ventilation in various applications. With an airflow rate of up to 285 m³/h and a nominal diameter of 100 mm, this fan is ideal for use in wall and window ventilation. The housing made of non-yellowing, UV-resistant ABS plastic ensures high durability and resilience. The fan offers two power levels with a maximum output of 115 W and a sound pressure emission of 46.7 dB(A), making it a quiet option for residential and workspaces. Additionally, the fan is equipped with an integrated humidity sensor that allows for automatic shutdown when the set threshold is no longer exceeded. Installation is flexible, as the fan can be mounted flush and offers both side and rear air outlet options.

• Integrated humidity sensor with adjustable thresholds
• Adjustable run-on timer from 3 to 20 minutes
• Backdraft damper to prevent cold air ingress
• Thermal overload protection for added safety
• Flexible mounting options for various installation needs.
