Product details

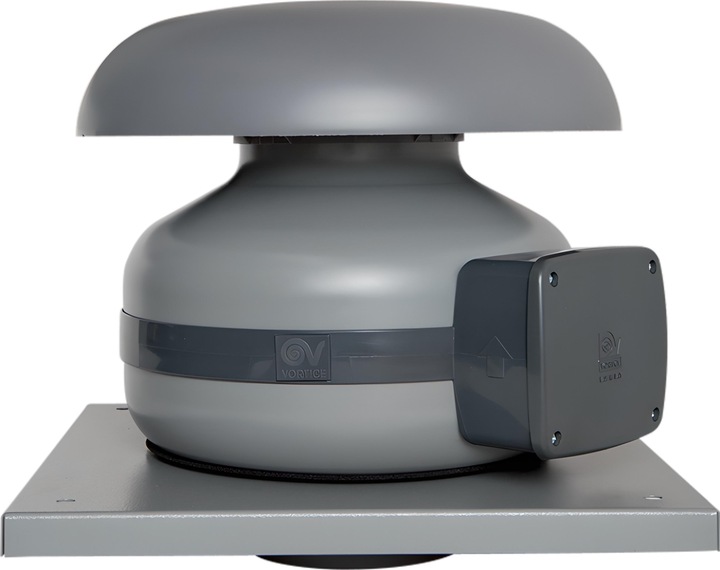

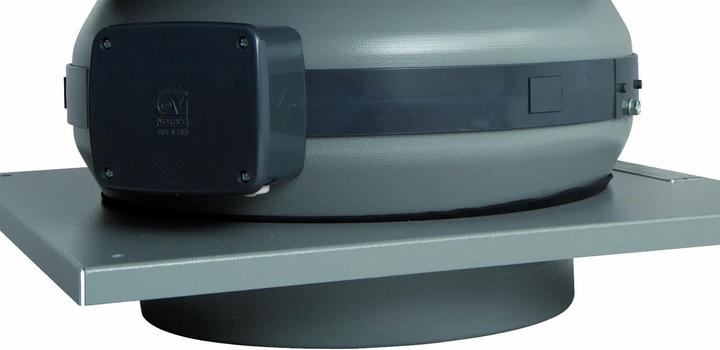

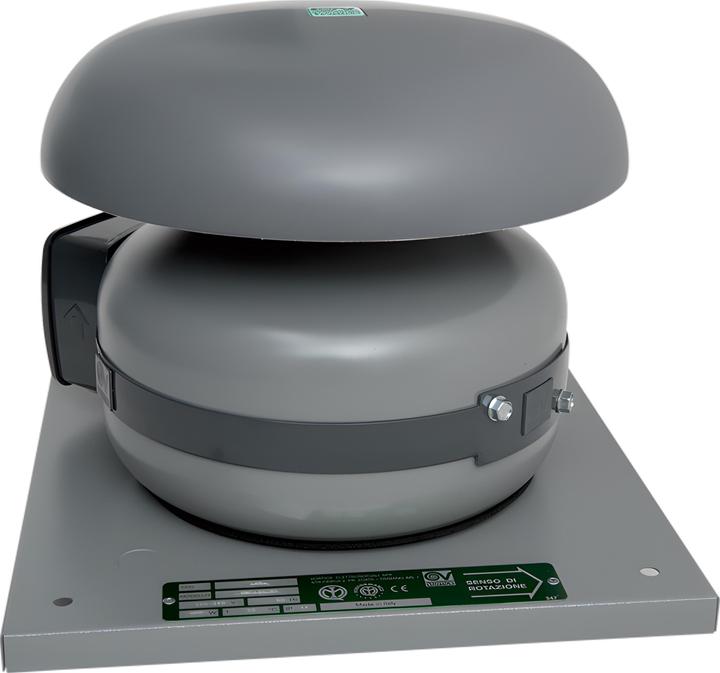

The CA 315 MD E RF from Vortice is a powerful radial roof fan designed for efficient ventilation in various applications. With a nominal diameter of 315 mm and a robust construction made of phosphated steel with a polyester powder coating, this fan offers both durability and reliability. It comes with a mounting plate that allows for easy installation. The fan operates at a mains voltage of 220-240 V and features three power levels, achieving an air output of up to 865 m³/h. Thanks to its thermal overload protection and IPX4 protection rating, it is suitable for continuous operation at temperatures up to 50°C. With a maximum sound pressure level of 40.7 dB(A), it ensures quiet operation, making it ideal for applications where a quiet environment is required.
- Three power levels with a maximum air output of 865 m³/h
- Robust construction made of phosphated steel with powder coating
- Thermal overload protection for added safety
- Suitable for continuous operation at temperatures up to 50°C
- IPX4 protection rating for use in humid environments.
Type of ventilation technology | Radial fan |
Airflow | 865 m³/h |
Suitable for pipe diameter | 312 mm |
Power | 130 W |
Item number | 37620838 |
Manufacturer | Vortice |
Category | Ventilation fan |
Manufacturer no. | 16187 |
Release date | 17.8.2023 |
Colour | Grey, Silver |
Exact colour description | Titanium Grey, Titanium Silver |
Material group | Metal |
Material | Metal |
Type of ventilation technology | Radial fan |
Airflow | 865 m³/h |
Noise emission | 40.70 dB |
Suitable for pipe diameter | 312 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Power | 130 W |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Length | 48.90 cm |
Width | 48.90 cm |
Height | 41.50 cm |
Weight | 12000 g |
