Product details

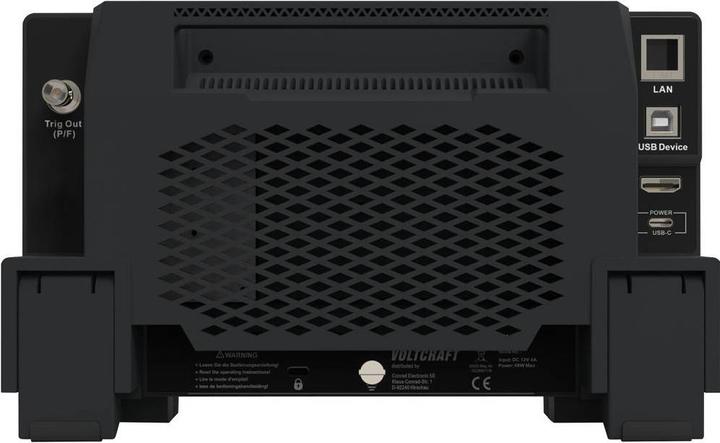

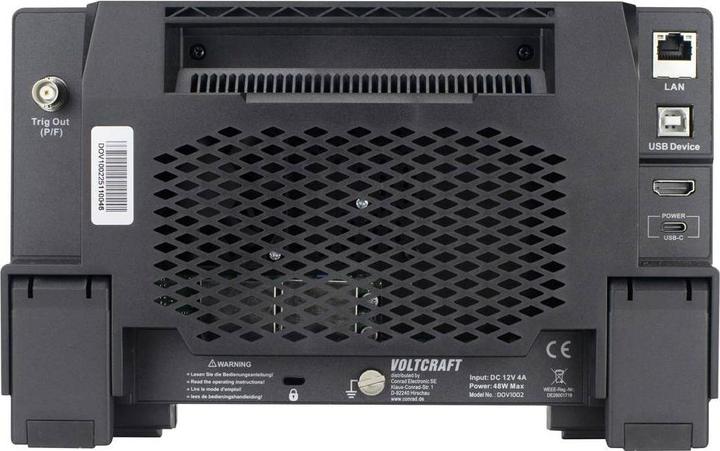

High-quality, innovative, and compact. The DOV oscilloscope series from Voltcraft impresses with a whole range of technical highlights and maximum user comfort: An analog-to-digital converter with 12-bit resolution is part of the standard equipment, along with USB, LAN, and HDMI interfaces. At the center is the 7-inch touchscreen with a resolution of 1024 x 600 pixels. It responds not only to touches but also to gestures, making cumbersome menu navigation largely unnecessary.
Outstanding technical specifications. All digital DOV oscilloscopes from Voltcraft operate with a maximum sampling rate of 1.25 GSa/s. The real-time capture is at 50,000 wfms/s, and the segmented capture is at 700,000 wfms/s, allowing for quick and precise capture of irregular signals. The horizontal sampling speed ranges from 1 ns/div to 1000 s/div (1-2-5 step).
Numerous trigger functions. One of the strengths of the DOV series from Voltcraft lies in its extensive trigger functions. Even difficult-to-trigger signals can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN, and LIN triggers.

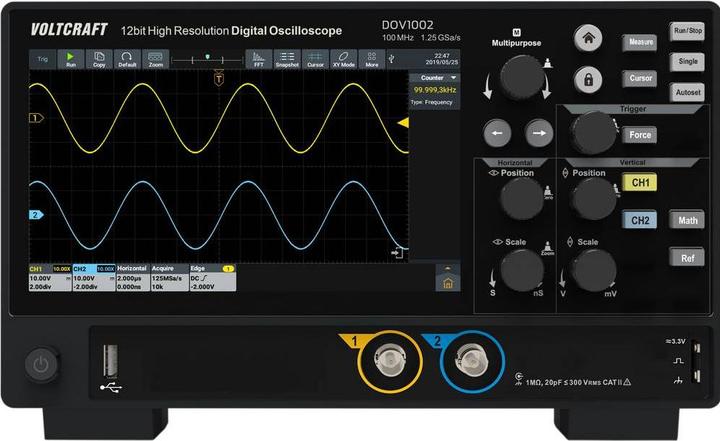

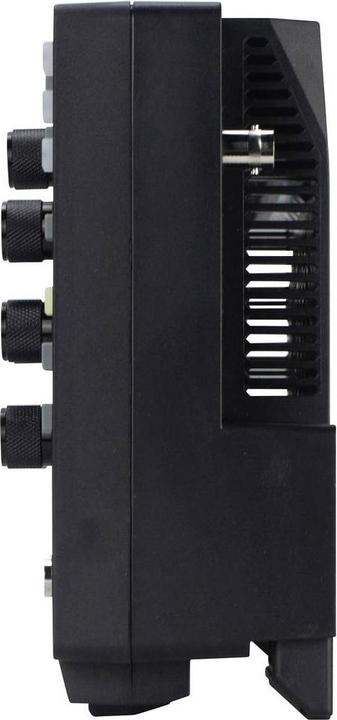

Specifications of the Voltcraft DOV1002. The DOV1002 features a bandwidth of 100 MHz and two analog inputs. The signal recording length is 50 M, and for clear display and evaluation, real-time signal waveform display on the PC is possible. The trigger sources are the two inputs CH1 and CH2, and users can choose between the capture modes of sample, peak, high resolution, average, and segmentation. The vertical sensitivity is adjustable from 500 µV/div to 10 V/div.

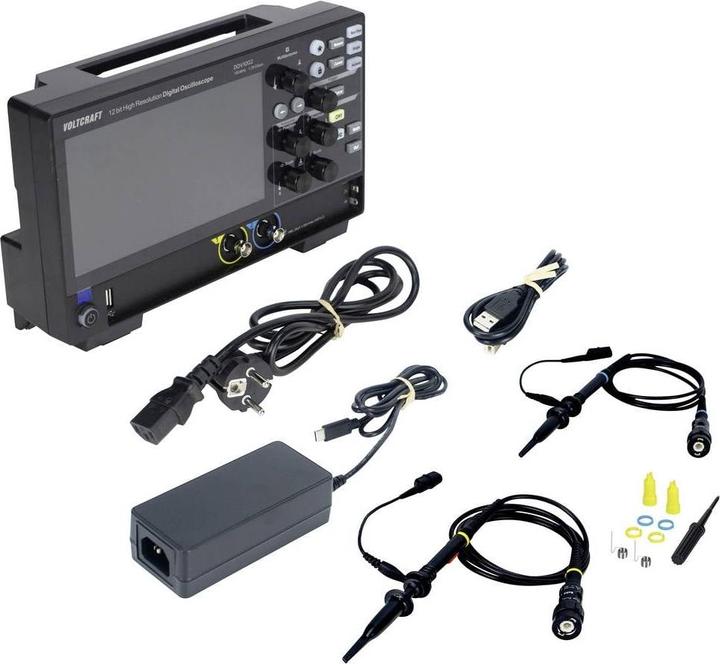

Delivery package with accessories. The Voltcraft DOV1002 comes with a USB Type-C power supply, USB cable, two probes, and a probe adjustment set. Additionally, the package includes software with an English manual on CD, a quick start guide, and a safety data sheet.
