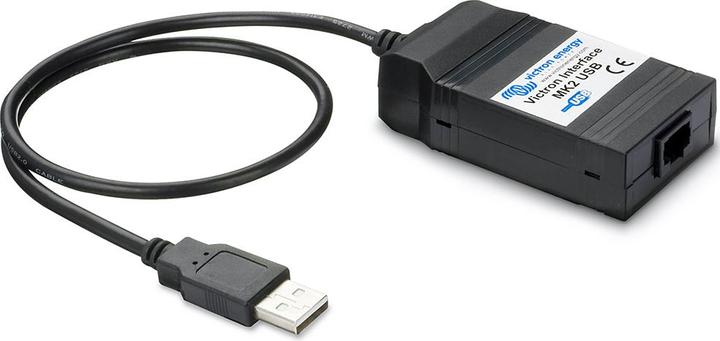

Victron Energy Victron MK2-USB Interface VE.Bus to USB

With the Victron Interface MK2-USB (MPN ASS030130010), many types of Phoenix inverters can exchange information with a computer via the RS-485 data port. To set and read all parameters, simply connect the Data-Link as shown to your PC. Additionally, all Victron Energy products equipped with an RS-485 data port, such as VE.Net, can be integrated into a computer-based monitoring and control system. To control the Phoenix devices via PC or laptop, the free Victron software "VE Configure" is required, which can be found in our download section.

Some of the options that the MK2 USB interface enables:

• Custom programming of many parameters such as output voltage, frequency, upper and lower voltage limits, and much more.
• Can be integrated into a computer-based monitoring and control system.
• All Phoenix Compact converters can also be used with VENet, Victron Energy's innovative power monitoring network, or other computer-based control and monitoring systems.
• Easy programming of the integrated relay. The relay can be used, for example, to generate signals in special situations or to start a generator.
• Parallel and three-phase operation with other Phoenix inverters is possible.

Compatible Victron inverters:
C12/1200, C12/1600, 12/3000, 12/5000, C24/1200, C24/1600, C24/2000, 24/3000, 24/5000, 48/3000, 48/5000, 48/8000, 48/10,000.

Additional accessories required to get started:
1x VE-Configure software available for free in our Victron download area.
1x RJ45 UTP cable – available in various lengths.

Delivery includes:
1x Victron ASS030130010 VE Interface MK2-USB.
