Victron Energy Orion-Tr Smart 48/12-30 isoliert
Supplied by
free shipping

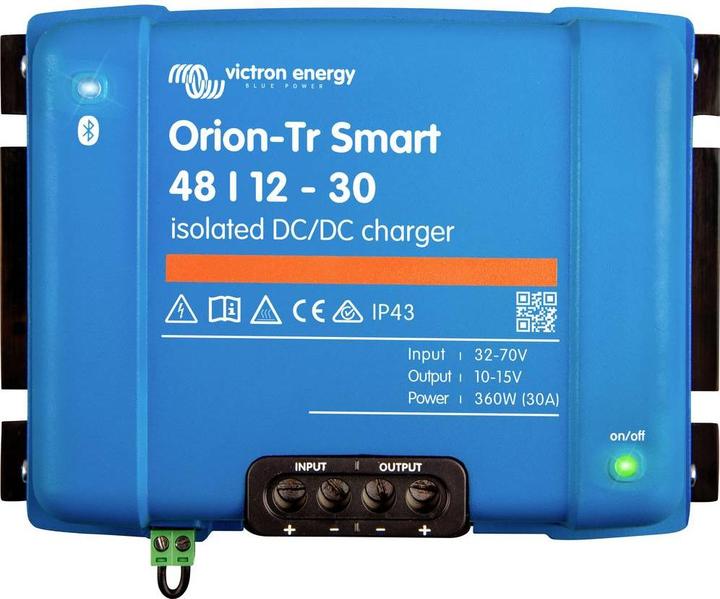

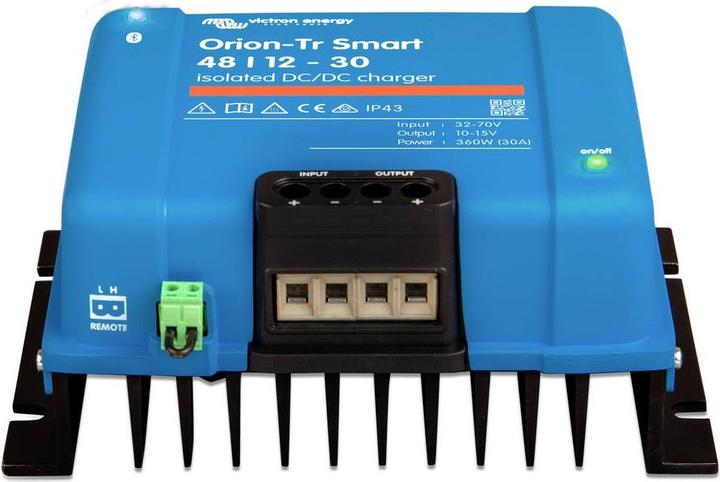

The Victron Orion-Tr Smart 48/12-30 is an isolated DC-DC voltage converter designed as a versatile charger or power source. With a wide input and output voltage range, this device is particularly suitable for applications in vehicles with modern intelligent alternators, which often provide insufficient charging voltage. This can lead to voltage drops, especially with longer cables, as found in boats and motorhomes. The Orion-Tr Smart ensures precise and controlled charging of the service battery while simultaneously protecting the starter or input battery from discharge. The ability to control the device via Bluetooth Smart allows for easy adjustment of settings and retrieval of important data through the VictronConnect app, without the need for a physical connection to the device. Weighing only 1.6 kg, the voltage converter is also lightweight and easy to install.
Nominal voltage | 48 V |
Nominal current | 30 A |
Safety function | Overheating, Short circuit |
Item number | 54634575 |
Manufacturer | Victron Energy |
Category | Charge controller |
Manufacturer no. | ORI481238120 |
Release date | 12.2.2025 |
Material | Open ends 16mm2 |
Nominal voltage | 48 V |
Nominal current | 30 A |
Power output | 360 W |
Safety function | Overheating, Short circuit |
Display type | Digital |
Protection type (IP code) | IP43 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |

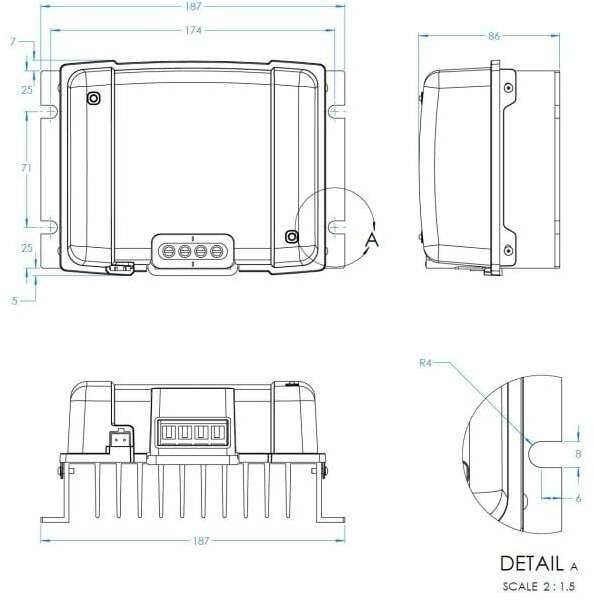

Length | 8 cm |
Width | 18.60 cm |
Height | 13 cm |
Weight | 1600 g |
