Velleman Semiconductor analyzer

The Velleman Semiconductor Analyzer is a highly advanced measuring device specifically designed for the analysis and identification of semiconductor components. This device offers a wide range of functions that allow for precise testing and evaluation of various semiconductor components. With automatic identification of component types and pin configurations, the analyzer simplifies the work of professionals in measurement technology and electronics. Additionally, it provides special functions for identifying protection diodes and resistor shunts, making it an indispensable tool for technicians and engineers. Its ability to analyze both bipolar transistors and MOSFETs, as well as measure forward voltages for diodes and LEDs, makes this analyzer particularly versatile. The user-friendly operation and the option for automatic and manual shutdown contribute to its efficiency.

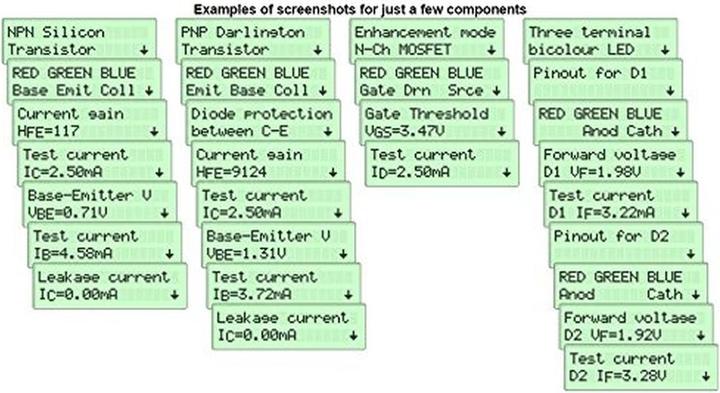

• Automatic identification of component types and pin configurations
• Measurement of gain and leakage current in bipolar transistors
• Detection of silicon and germanium transistors
• Gate threshold measurement for enhancement mode MOSFETs
• Forward voltage measurement for diodes, LEDs, and transistor base-emitter junctions.
