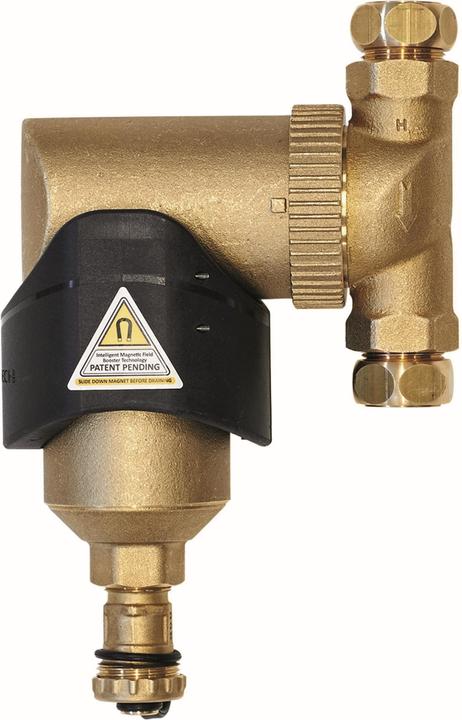

Vaillant Magnetite filter 14-27 kW for surface-mounted connection situation

Vaillant magnetite filter 20201906

Manufacturer: Vaillant
Designation: Magnetite filter 14-27 kW
Type: 20201906
Housing material: Brass
Design: Horizontal/vertical
Suitable for heating: Yes
Outer pipe diameter: 22 mm
Construction length: 112 mm
Operating principle: Magnet
Flow rate: 1.3 m³/h
Suitable for closed systems: No
Filter capacity: 0.36 l
With integrated automatic refill: No

Further details:
Magnetite filter up to 1.3 m³/h for surface-mounted connection, filtering magnetic and non-magnetic dirt particles from the heating water (sludge separator). This protects individual components in the unit.

Dimensions: 230 x 65 x 140 mm (HxWxD)
Connection dimension: R3/4
Can be used for atmoTEC exclusive, atmoTEC plus VCW, auroCOMPACT, ecoCOMPACT, ecoTEC exclusive, ecoTEC plus VC 10, 30 CS, ecoTEC plus VCI CS, ecoTEC plus VCW, ecoTEC plus VCW CS, VC 146/5-5, VC 206/5-5, VC 266/5-5.

Can be used for new installation and replacement. Connection accessories for replacement installation enclosed.

Note: Can only be used in the output range 14-27 kW.
EAN: 4024074744314.
