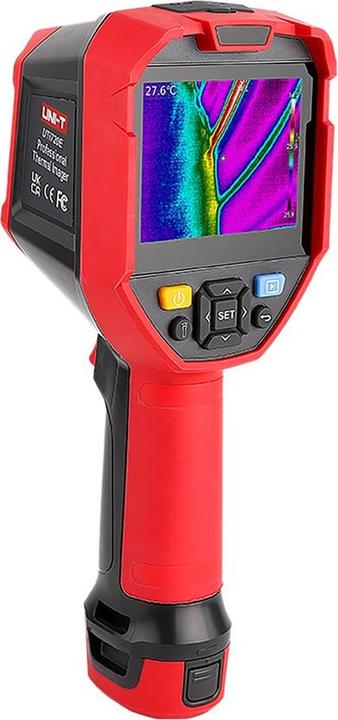

The UTi720E thermal imaging camera from Uni-T is a state-of-the-art device designed for precise temperature measurements across a wide range of -20 °C to 550 °C. With a resolution of 640 x 480 pixels, it provides clear and detailed thermal images that are useful for various applications in industry, construction, or maintenance. The camera features a thermal sensitivity of less than 50 mK, allowing for accurate detection of temperature differences. The integrated Wi-Fi functionality enables easy data transfer and analysis on a PC. The user-friendly 3.5-inch TFT-LCD display ensures simple operation and a clear presentation of measurement values. With a robust design that meets the IP54 protection rating, the camera is also suitable for use in demanding environments. The UTi720E is equipped with a lithium-ion battery that ensures long operating times and can be charged via a USB-C port.
Image resolution | 640 x 480 pixels |
Temperature measuring range min. | -20 °C |
Temperature measuring range max. | 550 °C |
Thermal imaging camera type | Hand-held thermal imaging camera |
Item number | 37530533 |
Manufacturer | Uni-T |
Category | Thermal imaging cameras |
Manufacturer no. | LEC-MIE0474 |
Release date | 12.8.2023 |
Material | Lithium-ion (Li-ion) |
Thermal imaging camera type | Hand-held thermal imaging camera |
Temperature measuring range min. | -20 °C |
Temperature measuring range max. | 550 °C |
Measurement accuracy | 2 °C |
Thermal sensitivity (NETD) | 50 mK |
Horizontal field of view | 56° |
Vertical field of view | 42° |
Refresh rate | 25 Hz |
Image sensor resolution | 307200 Pixels |
Image resolution | 640 x 480 pixels |
Interfaces / communication module | Wi-Fi |
USB connector type | USB-C |
Protection type (IP code) | IP54 |
Power supply | Rechargeable battery operated |
Battery type | Li-ion |
Capacity | 5 Ah |
Battery voltage | 3.60 V |
Battery size | Device specific |
CO₂-Emission | |
Climate contribution |
Scope of delivery | C-type USB cable, MicroSD card |
Length | 26 cm |
Width | 9.70 cm |
Height | 9.90 cm |
Weight | 630 g |
