UBC Bearing Pedestal bearing cast iron UCP 202 Bore-Ø 15 mm Hole spacing 96 mm

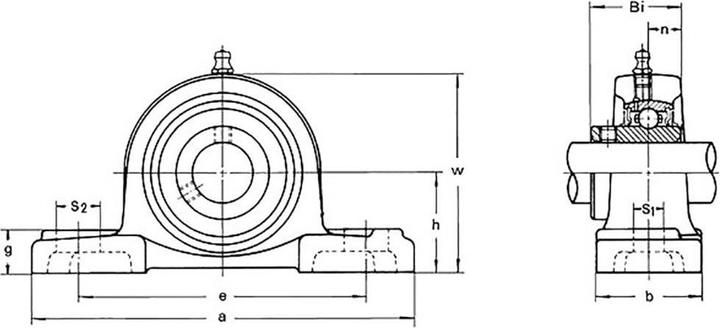

Description of the pedestal bearing UCP, gray cast iron housing for simple applications such as in agricultural machinery, conveyor systems, and construction machinery. The UCP unit consists of a sealed bearing with a spherical outer surface and a pedestal bearing housing made of gray cast iron. The shaft is secured using set screws on the inner ring. Due to the spherical outer surface of the bearing, misalignment errors of the shaft can be compensated. Technical data: Bore diameter: 15 mm, housing material: gray cast iron, weight: 0.61 kg, bearing type: pedestal bearing, hole spacing: 96 mm, dimensions: (h x A x E x B x s1 x s2 x g x w x L uc x n uc) 30.2 x 127 x 96 x 38 x 13 x 19 x 15 x 62 x 31 x 12.7 mm, dynamic radial load rating: 10100 N, static radial load rating: 6300 N, type: UCP 202.
