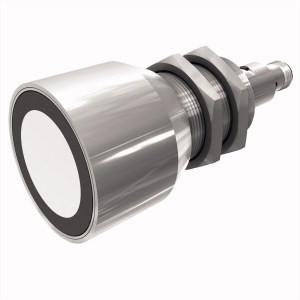

Turck Ultrasonic sensor Diffuse reflection sensor RU600U-EM30E-LIU2PN8X2T-H1151/3GD

Turck ultrasonic sensor RU600U-EM #1610075
Manufacturer: Turck
Designation: Ultrasonic sensor
Type: RU600U-EM #1610075
Analogue output version: 4 mA ... 20 mA
Electrical connection version: Plug connection
Switching output version: PNP/NPN
Switching function version: Programmable/configurable
Sensor length: 104.3 mm
Sensor diameter: 44.7 mm
Adjustment method: Manual adjustment
Measuring range length: 600 ... 6000 mm
Explosion protection category for gas: ATEX gas explosion protection, Cat. 3G
Explosion protection category for dust: ATEX dust explosion protection, Cat. 3D
Housing design: Cylinder, thread
Standard for interfaces: Other
No-load current: 50 mA
Relative linearity deviation: 0.5 %
Ambient temperature: -25 ... 45 °C
Supply voltage: 15 ... 30 V
Relative repeatability: 0.15 %
Switching frequency: 1.6 Hz
Material of the active surface of the sensor: Plastic
Material of the housing: Stainless steel

Further details:
Ultrasonic sensor, diffuse reflection sensor, ATEX II 3 G approval, Gases and vapours group IIC zone 2, Dusts Group IIIC Zone 22, For use in hazardous areas, the special conditions of the approval must be observed, safety clips to prevent undesired unplugging. Includes safety clips to prevent the cable from being pulled out when energized, smooth transducer front, cylindrical design M30, encapsulated, connection via M12x1 plug connector, measuring range via teach button, easy teach, temperature compensation, 1x switching output, PNP/NPN, 1x analogue output, 4-20 mA / 0-10 V / additional switching output, PNP/NPN, programmable NO/NC contact, process value transfer and parameterization via IO-Link, blind zone: 60 cm, range: 600 cm, resolution: 1 mm, opening angle of the sound beam: 15°, max. range: 6000 mm, EAN: 4047101373684.
