Turck Opto-sensor

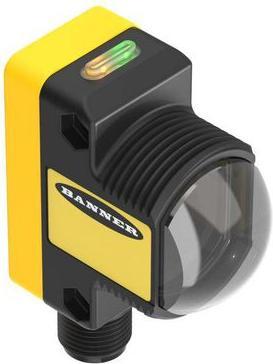

Turck Opto-Sensor QS30ARXQ

Manufacturer: Turck
Designation: Opto-Sensor
Type: One-way light barrier QS30ARXQ
Rated switching distance: 213000 mm
Max. switching distance: 213000 mm
Adjustment method: other
Electrical connection type: M12 connector
Switch output type: PNP/NPN
Switch function type: Normally Open (NO)
Housing design: Rectangular
Width of the sensor: 22 mm
Diameter of the sensor: 30 mm
Height of the sensor: 57 mm
Length of the sensor: 35 mm
Operating mode: Light switching
Material of the optical surface: Plastic
Material of the housing: Plastic
Min. reflector distance: 0 mm
Ambient temperature: -20..70 °C
Response time: 5 ms
Switching frequency: 16 Hz
Wavelength of the sensor: 875 nm
Material of the cable sheath: Polyvinyl chloride (PVC)
Suitable for safety functions: no
Protection class (IP): other

Turck Opto-Sensor QS30ARXQ: additional details
Opto-sensor, one-way light barrier (receiver), connector, M12 x 1, 5-pole, protection class IP67 / IP69K, operating voltage: 10 to 30 VDC, bipolar switching output, light switching, LED visible all around, selectable operating frequency to prevent mutual interference, 4-segment bar graph, max. range: 213000 mm, EAN: 0662488715625.
