Trilux Support profile

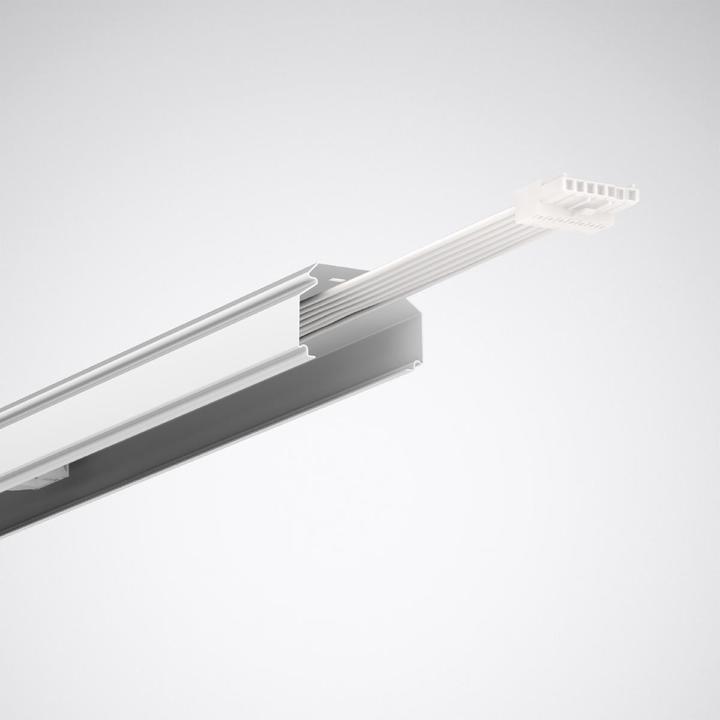

Trilux Support Profile IP20 07650L75 7LV E 37 01

Manufacturer: Trilux
Designation: Support Profile IP20 737.5 mm ws
Type: 07650L75 7LV E 37 01
Execution: other
Variable device carrier distance: no
With wiring: yes
Number of wiring conductors: 7
Cross-section of wiring conductors: 2.5 mm²
Suitable for cable tray: no
With cable tray: no
Electrical connection with plug system: yes
Integrated electromechanical coupling: no
Material: Steel
Color: white
Length: 738 mm
Width: 63 mm
Height: 41 mm
Protection class: I
Protection type (IP): IP20

The support profile is suitable for E-Line 7651 Fix LED light strip single luminaires or light strip end pieces. In combination with a separately ordered light strip coupling, it can also be used for light strip applications. Length of the support profile: 737.5 mm. With 7-wire through-wiring. Conductor cross-section 2.5 mm². Equipped with 2 separating plug tops for tool-free electrical connection of the device carriers at a distance of 370 mm each. With a 7-pole socket-plug pair for quick electrical connection and touch-safe termination of the wire ends. The heat-resistant through-wiring is fully equipped with all necessary components at the factory. All connections are designed as quick connections with polarity protection. Power supply can be done through an upper breakout opening (M20/PG13.5) without accessories. The support profile body is made of galvanized steel sheet and is coated white. EAN: 4018242432868.
