Quantity discount

Tox Window

6 pcs.
Save CHF3.30 CHF1.30/1pcs.
Ratings
BrandMore from Tox
Delivered between Wed, 22.4. and Fri, 24.4.
8 pieces in stock at supplier
Free shipping starting at 50.–

Dowel length5

Product details

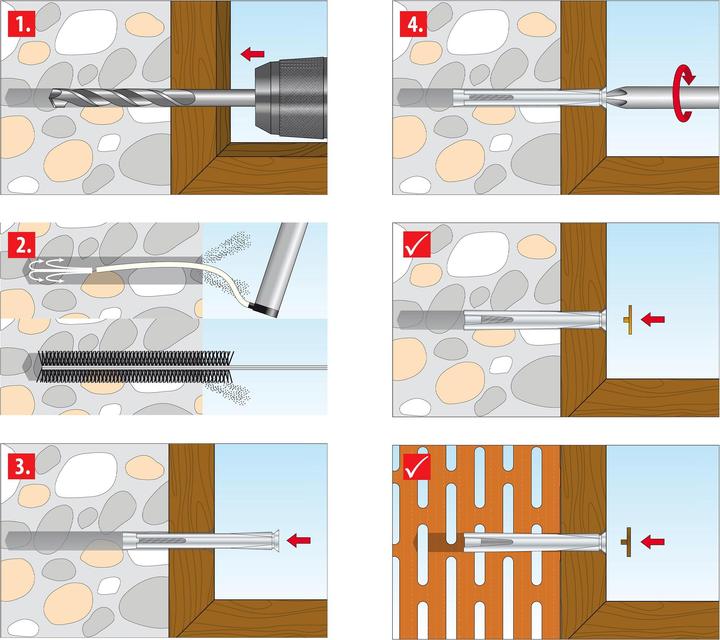

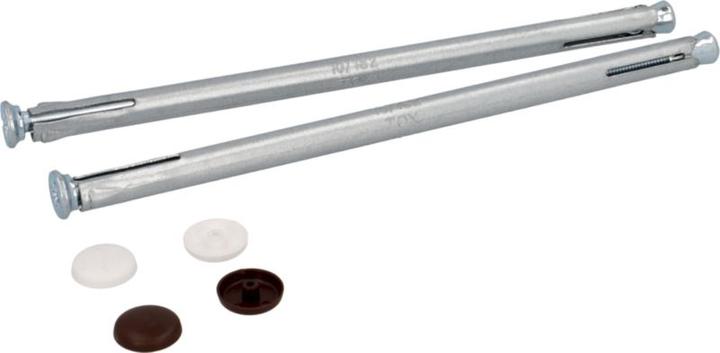

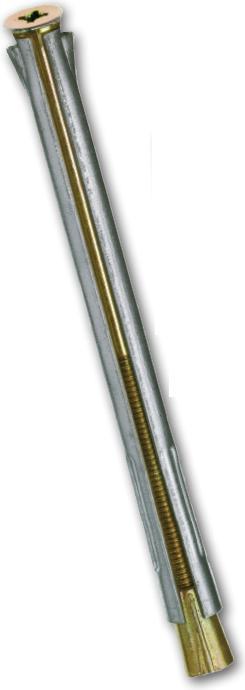

The Metal Frame Anchor Window from Tox is a reliable solution for secure fastening in various materials. With a length of 182 mm and a drill hole diameter of 10 mm, this anchor provides a pull and pressure-resistant fixation that ensures stable installation. The pre-assembled metric countersunk screw M6 (drive PZ3) allows for easy handling and installation. Thanks to the aluminum-zinc coating, the anchor is corrosion-resistant, enhancing its durability and reliability. Additionally, the anchor meets the fire resistance requirements according to DIN 4102 (Class A1), making it a safe choice for applications in fire-prone areas. Installation is carried out without the need for shimming or wedging the frame, making the process more efficient. The Metal Frame Anchor Window is therefore ideal for use in concrete, hollow bricks, and aerated concrete.

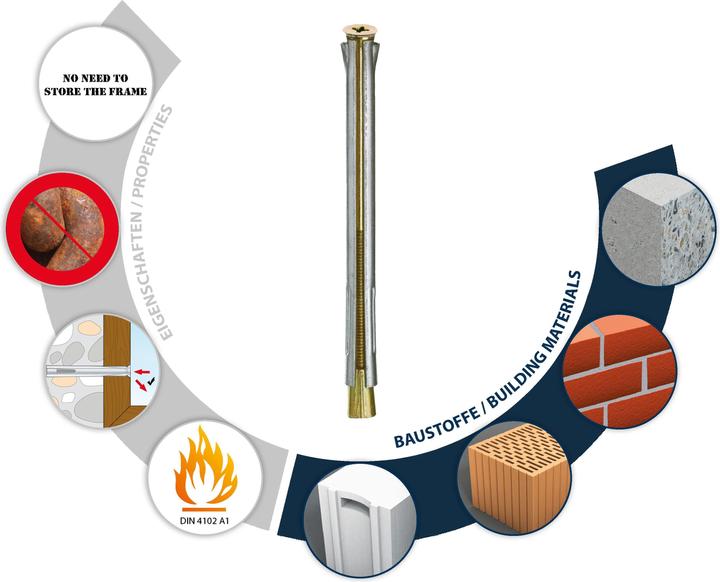

  • Pull and pressure-resistant fixation for stable installations
  • No shimming or wedging of the frame required
  • Corrosion protection through aluminum-zinc coating
  • Fire-resistant according to DIN 4102 (Class A1)
  • Easy handling with pre-assembled countersunk screw M6.

Key specifications

anchor type
Frame anchor, Metal expansion plug
borehole diameter
10 mm
Dowel length
182 mm
Items per sales unit
6 pcs.

General information

Item number
13208690
Manufacturer
Tox
Category
Wall plugs
Manufacturer no.
027601171
Release date
18.6.2020

Colour

Colour
Grey
Exact colour description
Silver

Material

Material group
Metal
Material
Steel, galvanized

Dowel Properties

anchor type
Frame anchor, Metal expansion plug
borehole diameter
10 mm
Dowel length
182 mm
bolt diameter
6 mm
borehole depth
20 mm

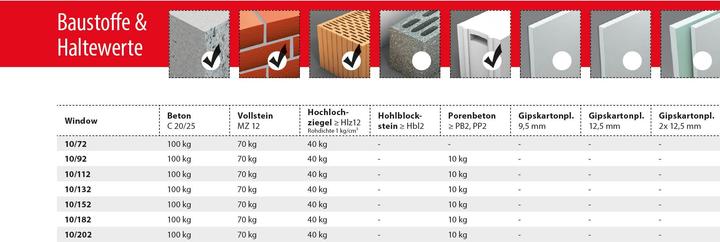

building material surface
Cellular concrete, Concrete, Solid lightweight concrete block, Vertically perforated brick
Material application
Steel

Origin

Country of origin
Germany, Taiwan

Voluntary climate contribution

CO₂ emissions
3.53 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
6 pcs.

Package dimensions

Length
20 cm
Width
8.10 cm
Height
1.80 cm
Weight
387 g

30-day right of return if unopened
No warranty
