Quantity discount

Tox Expansion dowel biceps 10x90 mm 25 pieces

25 pcs.
Save CHF1.– CHF0.42/1pcs.
2Ratings
BrandMore from Tox
Delivered between Tue, 27.5. and Wed, 28.5.
More than 10 items in stock at supplier

borehole diameter

Product details

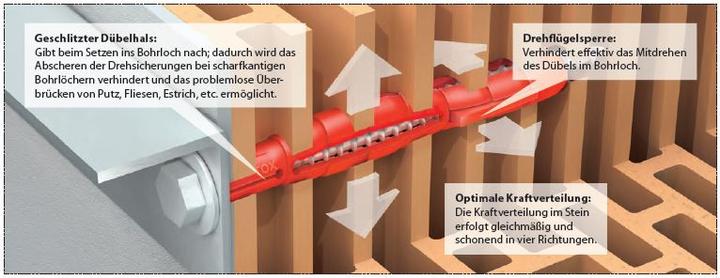

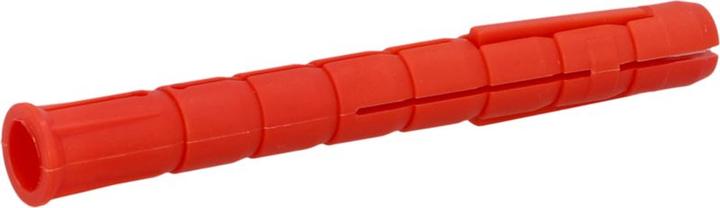

Multiple expansion through two 2-part expansion bodies offset by 90° with movable wings and a flexible anchor neck. Large anchoring depth.

Additional information:

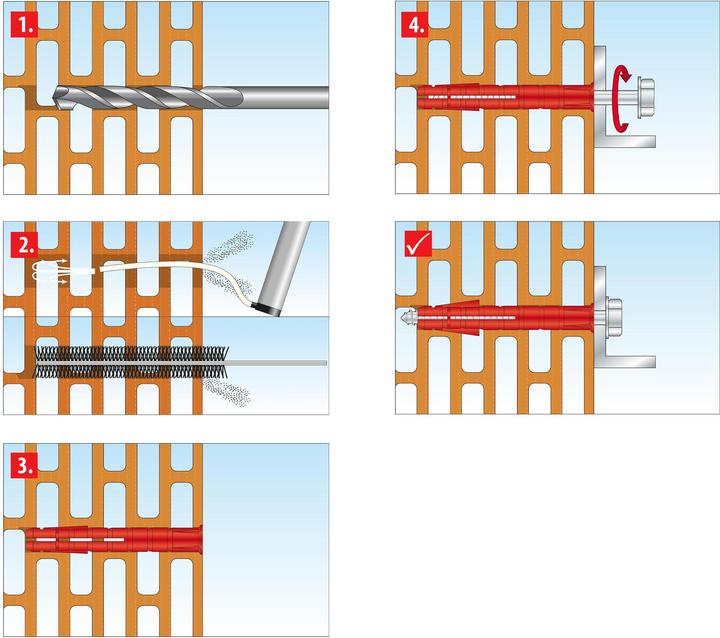

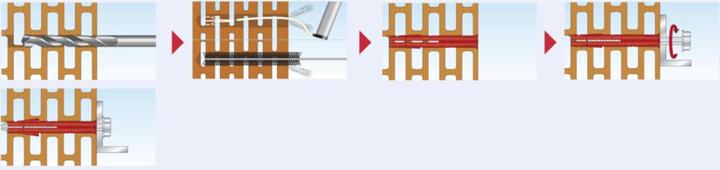

  • Create a drill hole the size of the anchor diameter.
  • Drill into the masonry without impact in rotary mode to prevent the ribs in the masonry from breaking.
  • Drill with impact in concrete and solid brick.
  • Minimum screw length = anchor length + component thickness + 1x screw diameter.
  • For pre-mounting: In solid brick with dense structure, the smallest possible screw diameter should be chosen.
  • The specified holding values refer to screws with the largest screw diameter.
  • Thread formation similar to DIN 7998.
  • The anchoring depth of the anchor must be adhered to.
  • Drilling methods and hole cleaning must be adapted to the building material.
  • The recommended loads apply to installation in the building material, not for installation in joints.
  • Approved anchors must be used for safety-relevant fastenings.

Key specifications

anchor type
Expansion dowels
borehole diameter
10 mm
Dowel length
90 mm
Items per sales unit
25 pcs.
bolt diameter
6 mm, 7 mm, 8 mm
Item number
13362401

General information

Manufacturer
Tox
Category
Wall plugs
Manufacturer no.
00910017
Release date
22.6.2020

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Plastic
Material
Nylon

Dowel Properties

anchor type
Expansion dowels
borehole diameter
10 mm
Dowel length
90 mm
bolt diameter
6 mm, 7 mm, 8 mm
borehole depth
100 mm
building material surface

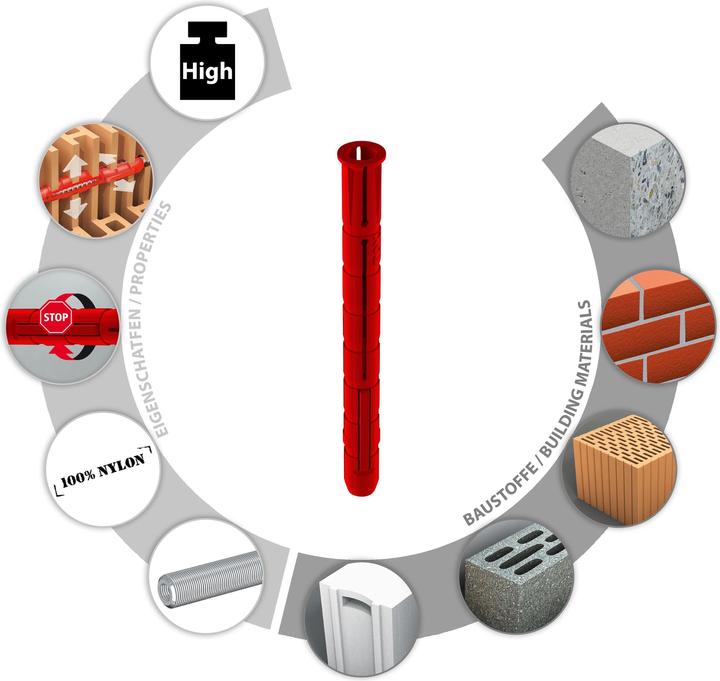

Cellular concrete, Concrete, Perforated lime sand brick, Solid brick
Material application
Plastic

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
25 pcs.

Package dimensions

Length
14 cm
Width
10 cm
Height
7 cm
Weight
160 g

30-day right of return if unopened
