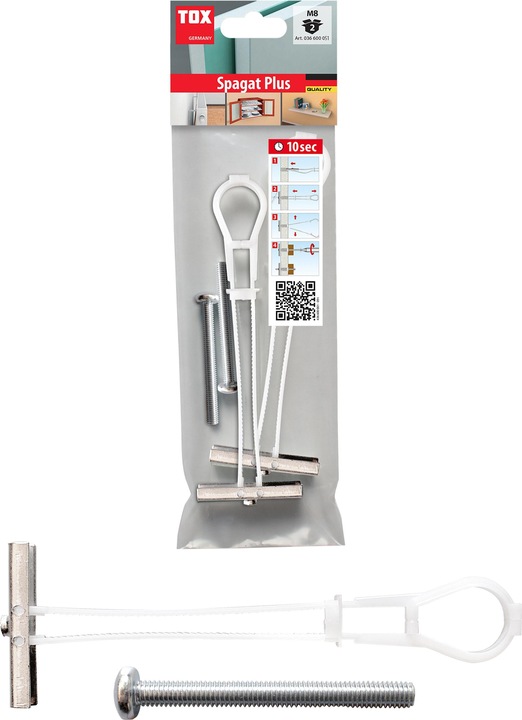

Tox Cavity folding dowel Spagat Plus M8

2 pcs.
Save CHF2.10 CHF3.10/1pcs.
1Ratings
BrandMore from Tox
tomorrow with flash delivery
to check if flash delivery is available to you.

Product details

Properties

  • Extremely high holding values for cavities
  • Suitable for metric screws
  • For panel thicknesses from 12.5 to 70 mm
  • Tilting mechanism automatically aligns itself at the optimum angle for load capacity when mounted on the wall
  • No setting tool required
  • Simple and fast assembly

*From a panel thickness of 50 mm, a longer screw must be used

Description & application

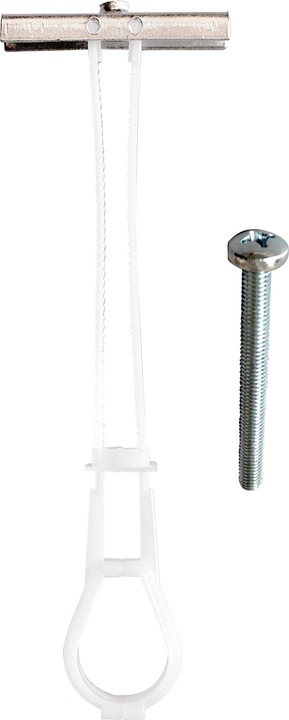

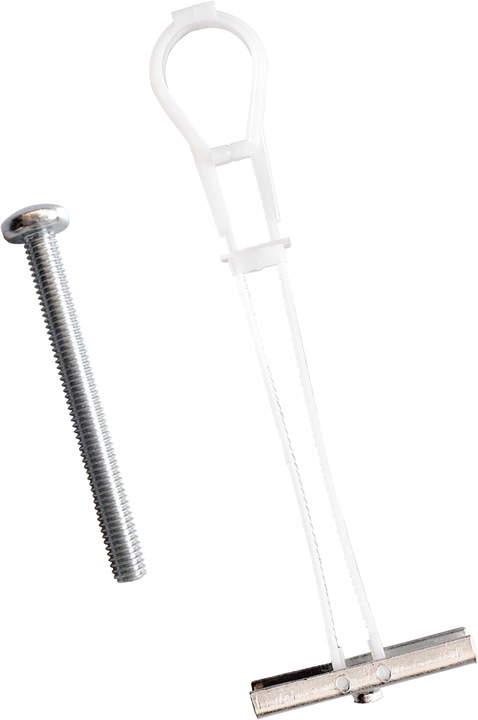

  • Variable length cavity plug made of plastic with metal tilting wings
  • For wall and ceiling installations

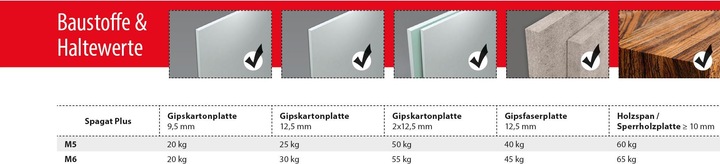

  • Suitable for plasterboard, gypsum fiberboard, chipboard, hollow core blocks, and prestressed concrete hollow core ceiling panels

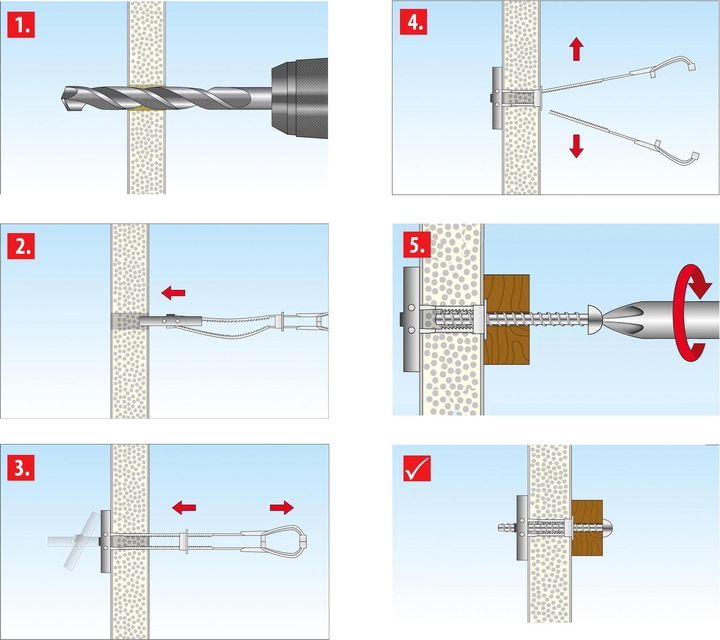

Processing & Assembly

  • Observe minimum cavity depth, panel thickness, and drill bit diameter
  • Observe vertical installation position for wall installations
  • Pre-insertion assembly
  • Apply slight pressure to the screw and screw in.

Key specifications

anchor type
Cavity dowels
borehole diameter
13 mm
Items per sales unit
2 pcs.
bolt diameter
8 mm
Item number
20698951

General information

Manufacturer
Tox
Category
Wall plugs
Manufacturer no.
036600051
Release date
28.4.2022
Sales rank in Category Wall plugs
92 of 4340

Material

Material group
Metal, Plastic
Material
Galvanised steel

Dowel Properties

anchor type
Cavity dowels
borehole diameter
13 mm
bolt diameter
8 mm
borehole depth
25 mm
Material application
Steel

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
2 pcs.

Package dimensions

Length
26.20 cm
Width
7.90 cm
Height
4.10 cm
Weight
96 g
