Theben LUXORliving E1

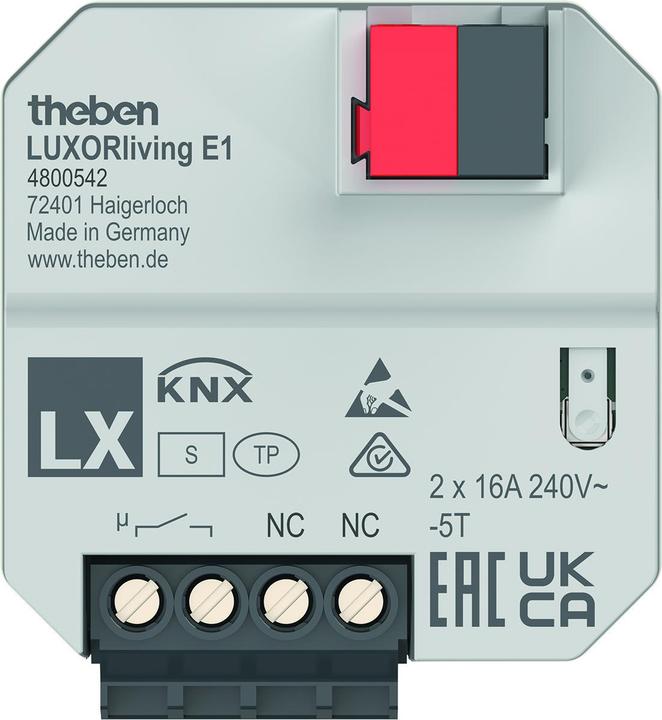

Theben 1-channel actuator LUXORliving E1

Manufacturer: Theben
Designation: 1-channel actuator
Type: LUXORliving E1
Bus system KNX: No
Bus system KNX wireless: No
Bus system wireless bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: LUXORliving
Bidirectional wireless: No
Mounting type: Flush-mounted
With bus coupling: Yes
Bus module removable: No
Continuous switching value: Yes
Switching value: Yes
Valve protection function: Yes
Manual switching: No
Max. switching current (resistive load): 16 A
Number of outputs: 1
Max. output current: 16 A
Output current: 16 A
Protection class (IP): Other
Min. installation depth of device box: 40 mm

Theben 1-channel actuator LUXORliving E1: additional details
LUXORliving 1-channel electric heating actuator, flush-mounted, for direct connection of electric radiators with high switching capacity. Integrated temperature controller can also be configured as an additional radiator. Easy installation thanks to particularly compact design. Direct connection of a floor sensor and 2 binary inputs for potential-free contacts such as buttons, switches, window contacts, temperature sensors (Input I2). Function of an additional heating circuit for simple control of a second heat generator.
