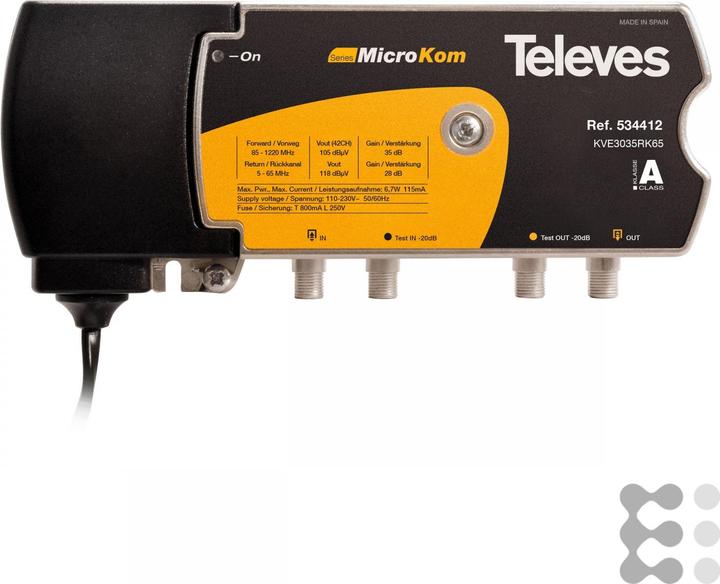

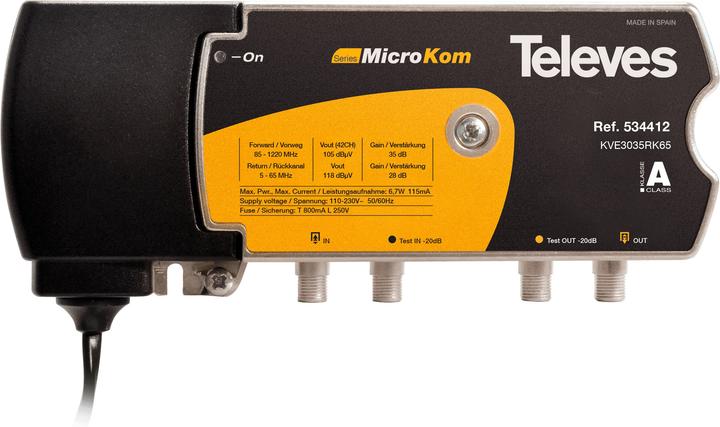

Televes KVE3035RK65 BK amplifier 30/35dB w.RK 5-65MHz 28dB

House connection amplifier with active or passive return channel for small to medium-sized multimedia-capable CATV/BK networks. Settings are made via plug-in jumpers. The forward gain is 30 dB/35 dB; the return channel can be passive or active (28 dB). The frequency range up to 1220 MHz also allows for use in DOCSIS 3.1 networks.

Highlights

• Switchable gain on both the forward and return channels
• Attenuation and equalization settings on both the forward and return channels
• Integrated high-performance switch-mode power supply with low power consumption

Features

• High output power
• Test input and output (-20 dB)
• Die-cast housing with very good shielding properties.
