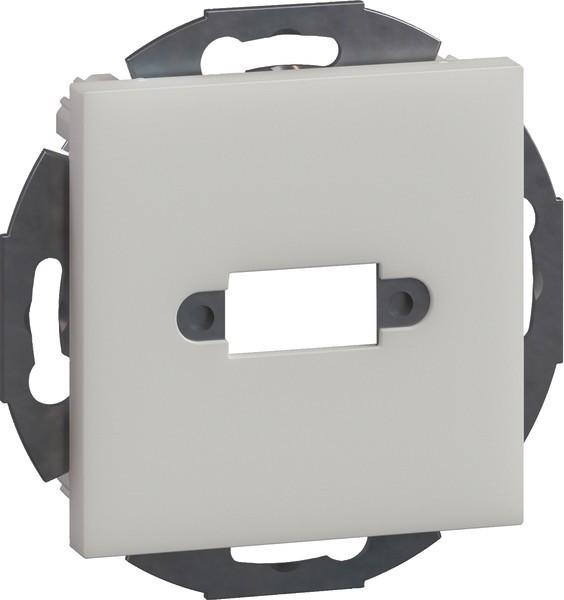

Tehalit Mounting frame

Tehalit mounting frame GSETMM1049011

Manufacturer: Tehalit
Designation: Mounting frame for 4 multimedia
Type: GSETMM1049011
Composition: Base element with central cover plate
Application: Modular-Jack
Support ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
With imprint: No
Mounting type: Other
Material: Other
Material quality: Other
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Matt
Colour: Black
RAL number (similar): 9011
Transparent: No
Mounting type: Mounting with screw
Number of modules (with modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 4
With strain relief: No
Sockets shielded: No
Housing shielded: Yes
Luster terminal: No
With lighting: No
Suitable for degree of protection (IP): IP00
Impact resistance: IK07
Device width: 71 mm
Device height: 71 mm
Device depth: 20 mm
Min. device box depth: 40 mm
Depth of appliance box: 40 mm

Tehalit mounting frame GSETMM1049011: more details
Mounting frame 4-gang for multimedia connections type 10 with centre plate 55 gs. Mounting frame with 19.9 x 14.8 mm cut-out to accommodate four multimedia modules type 10 (Keystone / Large Keystone / AMP). Outlet direction of the modules straight 90°. Including central disc 4-fold for tool-free mounting with dimensions 55 x 55 mm. For installation in bayable appliance boxes for trunking, with reduced installation depth for flush fitting with the closing contour of the trunking. For use with frame covers for sill trunking with central disc dimensions 55 x 55 mm and optional integrated labelling field.
