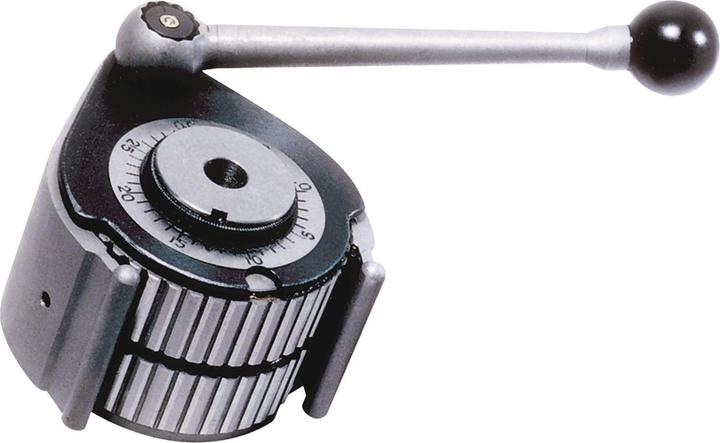

Tecwerk Quick-change tool holder head size BB

With eccentric clamping for quick changing of machining tools while maintaining a repeat accuracy of 0.01 mm. The height of the tip is adjusted using a set screw on the tool holder. The gearing and flat contact surface are hardened and ground. 40 teeth in the steel holder head allow for 40 different angle settings of the tools, each by 9°.

Hole diameter = hole of the central body.

Max. extension = center of the hole to the end/edge of the exchange holder.

Additional technical specifications:
· Max. extension: 71 mm.
