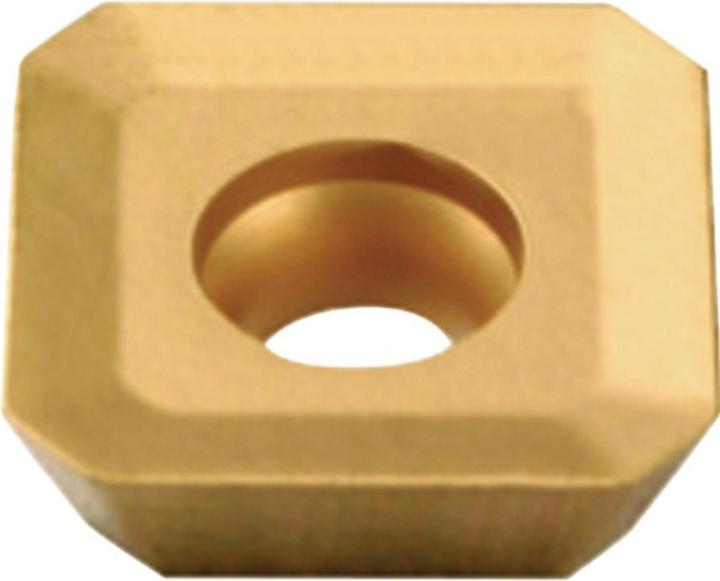

Tecwerk Insert SEET1204AFSN-M PMK40 medium machining

Spanformer geometry M = for medium machining

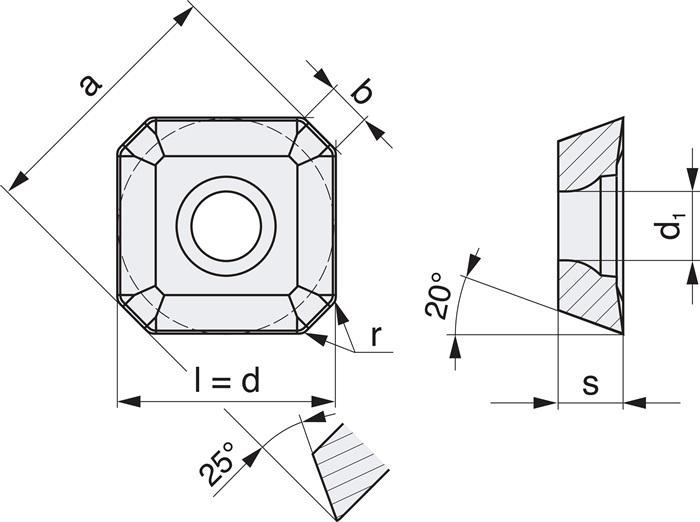

Additional technical specifications:
· d1: 5.5 mm
· s: 4.76 mm
· l: 12.7 mm
· d: 12.7 mm
· Application area: Rough machining
· Max. cutting depth: 6.5 mm in steel / 4.9 mm in stainless steel / 6.5 mm in cast / - mm in non-ferrous metals / 3.9 mm in superalloys / - mm in hardened steels
· Min. cutting depth: 1 mm in steel / 1 mm in stainless steel / 1 mm in cast / - mm in non-ferrous metals / 1 mm in superalloys / - mm in hardened steels
· Min. feed rate: 0.2 mm/rev in steel / 0.2 mm/rev in stainless steel / 0.2 mm/rev in cast / - mm/rev in non-ferrous metals / 0.2 mm/rev in superalloys / - mm/rev in hardened steels
· Max. feed rate: 0.4 mm/rev in steel / 0.3 mm/rev in stainless steel / 0.4 mm/rev in cast / - mm/rev in non-ferrous metals / 0.24 mm/rev in superalloys / - mm/rev in hardened steels
· Vc min.: 200 m/min in steel / 120 m/min in stainless steel / 190 m/min in cast / - m/min in non-ferrous metals / 40 m/min in superalloys / - m/min in hardened steels
· Vc max.: 255 m/min in steel / 150 m/min in stainless steel / 240 m/min in cast / - m/min in non-ferrous metals / 75 m/min in superalloys / - m/min in hardened steels

Quantity: 10 pieces per carton.
