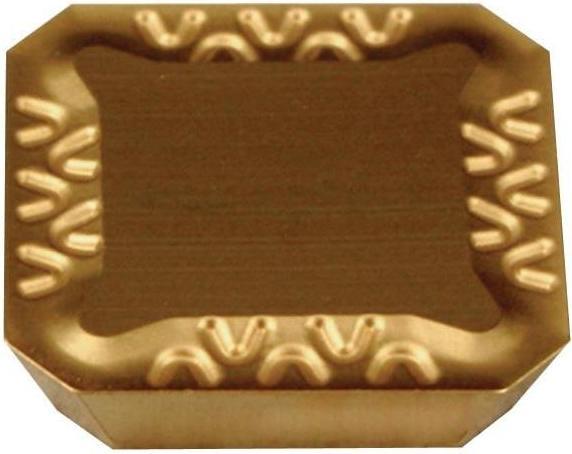

Tecwerk Insert SEER1203AFEN-M PMK30 plain machining

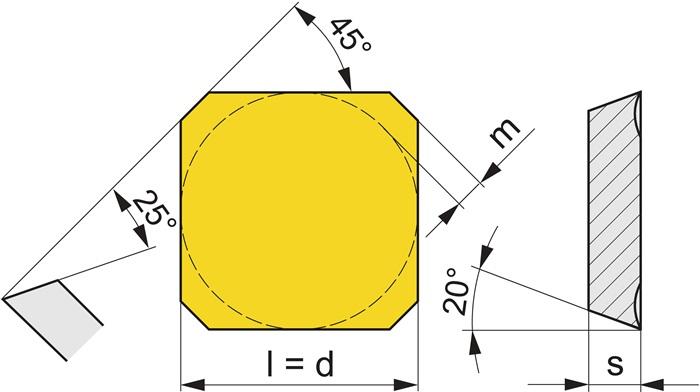

The SEER1203AFEN-M PMK30 indexable insert from Tecwerk is a highly developed accessory for machines, specifically designed for finishing operations. With a chip former geometry optimized for medium machining, this insert offers precise and efficient processing of various materials. The insert has a thickness of 3.18 mm and both a length and diameter of 12.7 mm. It is suitable for a maximum cutting depth of 6.5 mm in steel, stainless steel, and cast iron, while achieving a maximum cutting depth of 5.2 mm in superalloys. The indexable insert allows for flexible application with minimum feed rates of 0.2 mm/rev and maximum values of up to 0.4 mm/rev in steel. The cutting speed varies depending on the material, ranging from 45 m/min in superalloys to 285 m/min in steel. These features make the indexable insert an indispensable tool for precise machining processes.

• Optimized chip former geometry for medium machining
• Maximum cutting depth of 6.5 mm in various materials
• Flexible feed rates from 0.2 to 0.4 mm/rev
• High cutting speeds of up to 285 m/min in steel.
