TECE TECEprofil frame - universal toilet frame with front inlet tank, with outlet for connecting the deod
free shipping

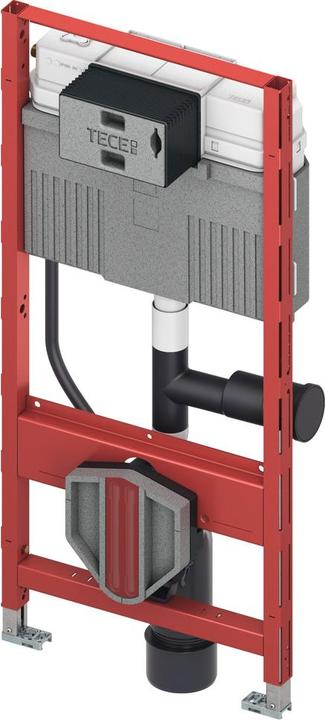

TECEprofil 1x WC module with uni cistern, featuring a connection for odor extraction. The construction height is 1120 mm and includes an "easy fit" actuator plate mounting and an empty pipe for connecting electronic shower toilets. It is designed for mounting on TECEprofil profile pipes or for installation in metal or wooden post-and-beam walls. This module can be mounted as a pre-wall or corner module and is also suitable for single block mounting.
The uni cistern operates from the front and is made of impact-resistant plastic. It comes completely pre-assembled and sealed, with a cistern connection featuring an external thread R 1/2" on the side, compatible with quick adapters. The tank volume is 10 liters, with a preset standard flush volume of 6 liters. It is condensation water insulated and compatible with TECE actuating plates and WC fittings.
This module can be used as a single-flush or dual-flush cistern and includes an installation tunnel for a service opening, which can be shortened without tools. It features a low-noise hydraulic filling valve and a fitting group. The module frame is self-supporting and powder-coated, with two retaining bolts and nuts M 12.
The WC drain bend is DN 90 with a transition adapter, which is also suitable for horizontal installation. The WC connection set and WC connection box include rough-in protection and an empty pipe for universal shower-toilet connection (check position), along with a junction box and cover for the transformer.
To be ordered separately: WC actuating plate, fastening for pre-wall, corner or wooden post installation, insertion shaft for cleaning rods (optional), and TECEone upgrade set for dry construction (optional).
flush volume | 6 l |
Cistern type | Flush-mounted cistern |
Item number | 31576881 |
Manufacturer | TECE |
Category | Toilet tanks |
Manufacturer no. | 9300303 |
Release date | 8.6.2022 |
Colour | Red |
Cistern type | Flush-mounted cistern |
mounting style | Flush-mounted |
flush volume | 6 l |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Profile frame - a universal concealed WC frame with a concealed flush valve that can be operated from the front. |
Depth | 1160 mm |
Width | 500 mm |
Height | 156 mm |
