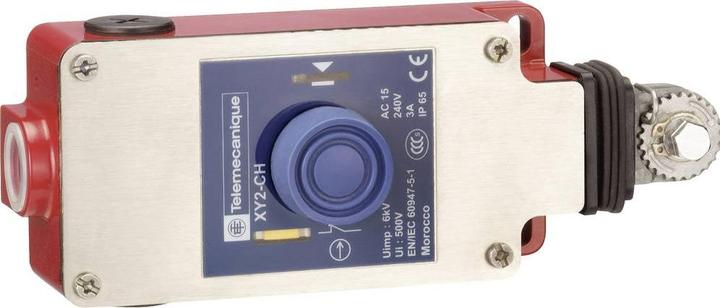

TE Sensors Grab wire safety switch, 2NC

Range: Preventa
Series: XY2-CH
Reset button: Yes
Contact configuration: 2 NC contacts
Rope span max.: 15 m
Max. current: 3 A AC, 270 mA DC
AC voltage max.: 240 V
DC voltage max.: 250 V
Number of cable entries: 1
Cable entry: PG13.5
Size of cable entries: PG13.5
Depth: 95 mm

UL approval file number: E164353 CCN NKCR. CSA approval file number: LR44087 class 3211 03. CE marking. Manufacturer part numbers with the suffix H29 are versions with cable entry with ISO-M20 thread. The XY2-CH emergency stop pull-wire switch, also known as a gripper wire switch, is ideal for applications such as conveyor belt systems, packaging, textile and transfer machines, presses, woodworking machinery, paint lines, and test laboratories. Recommended distance between cable holders: 5 m. Integrated twist lock reset by push button. Water- and dustproof housing. Surface mounting.
