Product details

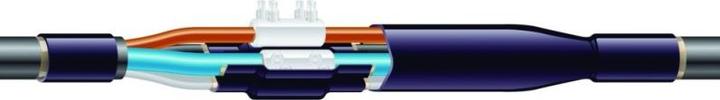

Krüger-Werke GmbH connecting sleeve LJSM-4X035-095
Manufacturer: Krüger-Werke GmbH
Designation: Connecting sleeve 4x35-4x95 mm²
Type: LJSM-4X035-095
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat shrinkable
Insulation material: Plastic
For connecting paper-insulated cables with plastic-insulated cables: No
Number of conductors: 4
Nominal conductor cross-section: 35..95 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Connecting accessories supplied: Screw connector with tear-off head
Halogen-free: Yes
Further details: Standard connecting sleeve for four-core plastic cables. Version with tear-off head screw connectors. Universally applicable for connecting unshielded plastic cables (e.g. N(A)YY, N(A)2XY, N2XH). For cables without reinforcement with PVC, PE, XLPE, and EPR insulation. Heat-shrinkable, cross-linked polyolefin tubing, coated on the inside with hot-melt adhesive. Suitable for Al and Cu conductors. Applications include indoor, outdoor, ground, water, installation ducts, and pipes. Complies with Raychem specification PPS 3013 and meets the requirements of all major national and international regulations. System tested according to CENELEC EN 50393.
