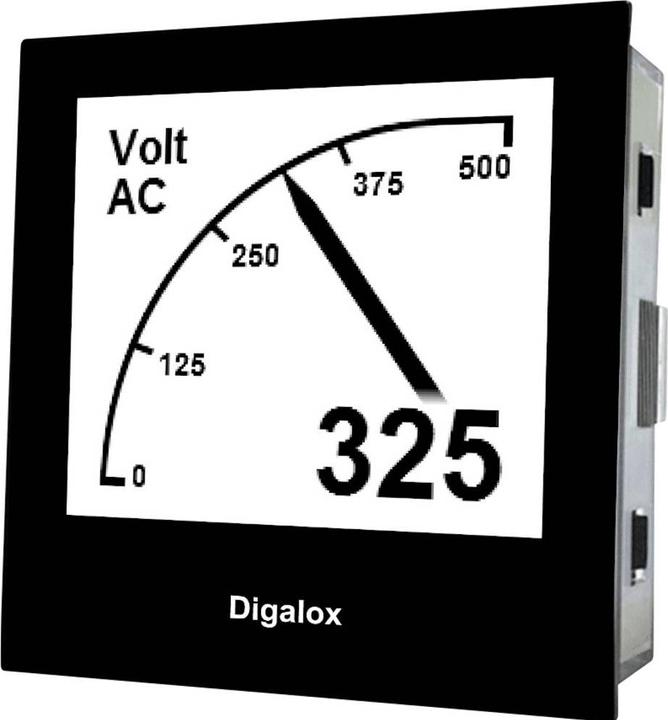

TDE Instruments DPM72-AV2 Digital panel meter

Ratings
BrandMore from TDE Instruments
Delivered between Thu, 4.6. and Fri, 5.6.
5 pieces in stock at third-party supplier
Supplied by
free shipping

Protection type (IP code)2

Product details

The Digalox® DPM72-AV2 is a digital panel meter designed for the precise measurement of current, voltage, and frequency. It supports both AC and DC measurements and offers the ability to switch between different measurement functions via a relay contact. The device records minimum and maximum values, which can also be displayed and reset through the relay contact. Measurement data can be recorded over a period ranging from 36 seconds to 14 days, with values stored as long as the device is powered. The configuration of the device can be done via the optional USB interface and the "Digalox® Manager" software, which allows for a variety of customizations, including scale ranges and display designs. Additionally, measurement data can be graphically analyzed and exported as a CSV file, enabling comprehensive data analysis.

  • Measurement of current, voltage, and frequency
  • Minimum and maximum value recording for precise analysis
  • Flexible configuration via USB and software
  • Graphical analysis and CSV export of measurement data.

Key specifications

Energy meter type
Multifunction measuring device
Mounting type
Built-in installation
measurement module
Amp, Volts
Maximum current
10 A

General information

Item number
18010368
Manufacturer
TDE Instruments
Category
Energy monitors
Manufacturer No.
DPM72-AV2
Release date
19.11.2021

Colour

Colour
Black
Exact colour description
Black

Energy meter property

Energy meter type
Multifunction measuring device
Mounting type
Built-in installation
measurement module
Amp, Volts
Maximum current
10 A
Display type
Digital

Safety

Protection type (IP code)
IP10, IP65

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Product dimensions

Height
72 mm
Length
34 mm
Width
72 mm
Weight
140 g
