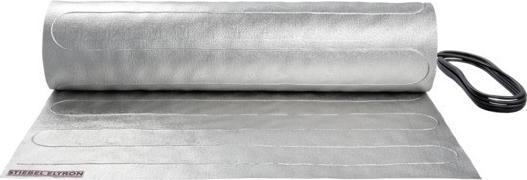

Stiebel Eltron Floor Heating FTD 140/6
Manufacturer: Stiebel Eltron
Description: Floor heating for 6 sqm, 840W/230V
Type: FTD 140/6
Design: Heating cable
With carrier mat: yes
Heating conductor fixation: glued
Self-adhesive: no
Connection voltage: 230 V
Connection power: 840 W
Power: 140 W/m²
Heating conductor load: 7 W/m
Resistance: 63 Ohm
Number of cold leads: 1
Length of cold leads: 3000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 6 m²
Length: 12000 mm
Width: 500 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
The electric ALU thin bed heating mats are suitable for parquet, vinyl, and laminate floors in new buildings and during renovations. The heating mats are simply installed by floating them on the screed and quickly provide a pleasantly warm floor surface, regardless of the existing heating system. The heating mat can be used as an additional or supplementary heating solution.
Comfort features: Ideal and constant heat distribution through a special foil surface. Due to the low installation height, the heating mat can be easily retrofitted at any time. The heating conductors, wrapped in aluminum foil, offer excellent thermal conductivity to the floor covering.
Installation: Simple floating installation directly on the screed. Parquet or laminate is laid directly on the heating mat.
Heating capacity | 840 W |
Item number | 33834398 |
Manufacturer | Stiebel Eltron |
Category | Floor heating |
Manufacturer no. | FTD140/6-StiebelEltron- |
Release date | 17.5.2023 |
Length of heatsealing band | 3 m |
Room area | 6 m² |
Heating capacity | 840 W |
Suitable for | Laminate, Parquet, Vinyl |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 1200 cm |
Width | 50 cm |
