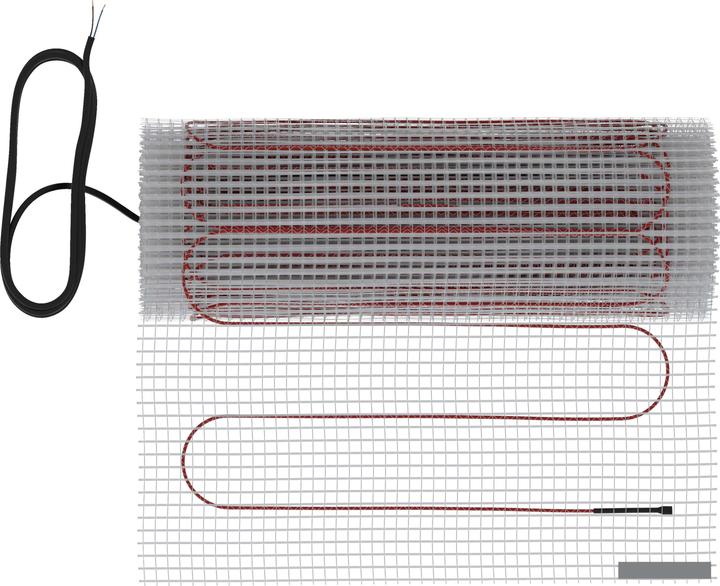

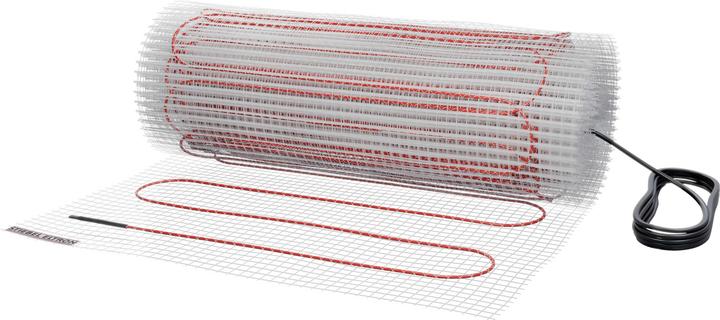

Stiebel Eltron Electric underfloor heating for large areas, for area 8 m², 100 W/m², FTM 100/8
Supplied by
Elektro4000 DE
free shipping
Stiebel Eltron Floor Heating FTM 100/8
Manufacturer: Stiebel Eltron
Description: Floor heating for 8 sqm, 800 W/230 V
Type: FTM 100/8
Design: Heating cable
With carrier mat: yes
Fixation of heating conductor: sewn
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 800 W
Power: 100 W/m²
Heating conductor load: 9 W/m
Resistance: 65 Ohm
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 8 m²
Length: 16000 mm
Width: 500 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
The thin-bed heating mats with moderate heating power are suitable for use under soft floor coverings such as carpet, vinyl, or cork.
Comfort features: Installed directly in the screed or leveling compound under the floor covering, the thin-bed heating mat quickly provides a pleasantly warm floor surface, regardless of the existing heating system. It can be used as supplementary or additional heating. Due to its low installation height, it can be placed directly in the tile adhesive under ceramic coverings or in a leveling layer for carpets and other soft floor coverings. The laying width is well-suited for large rooms with a clear geometry. In combination with a water-based underfloor heating system, the comfort of a warm floor can also be achieved outside the heating season. The heating conductor is completely sewn onto the self-adhesive carrier mat, making it easy and quick to lay on the floor.
Installation: The mat can be installed in the bathroom in conjunction with a residual current device. By cutting the carrier fabric, the mats can be adapted to individual space conditions.
EAN: 4017212056622.
Installation height | 3 mm |
Heating capacity | 800 W |
Operating mode | Electrical |
Item number | 33834347 |
Manufacturer | Stiebel Eltron |
Category | Floor heating |
Manufacturer no. | 205662 |
Release date | 17.5.2023 |
Colour | Red, White |
Exact colour description | Red, White |
Length of heatsealing band | 16 m |
Installation height | 3 mm |
mounting style | Self-adhesive |
Room area | 8 m² |
Heating capacity | 800 W |
Protection type (IP code) | IPX7 |
Operating mode | Electrical |
Heat output per meter | 100 W |
Suitable for | Damp room cable |
Length of connection cable | 4 m |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 1600 cm |
Width | 50 cm |
