Steinel Motion Detector sensIQ S AP WS KNX
Manufacturer: Steinel
Description: KNX Motion Detector
Type: sensIQ S AP WS KNX
Bus System KNX Radio: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Design: Motion Detector
Mounting Type: Surface-mounted
Suitable for Wall Mounting: yes
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Color: white
RAL Number (similar): 9010
Transparent: no
With Bus Coupling: yes
Secondary Input: yes
Under-Creeping Protection/Backfield Monitoring: yes
Animal Channel: no
Stairwell Monitoring: no
Adjustable Response Brightness: yes
Teach Function for Response Brightness: yes
Optimal Mounting Height: 2 m
Max. Range to One Side: 20 m
Max. Frontal Range: 20 m
Detection Field Diameter on Floor: 8 m
Vertical Detection Angle: 180°
Horizontal Detection Angle: 300°
Number of Channels: 2
Min. On Duration: 60 s
Max. On Duration: 15 min
Width: 114 mm
Height: 74 mm
Steinel Motion Detector sensIQ S AP WS KNX: additional details

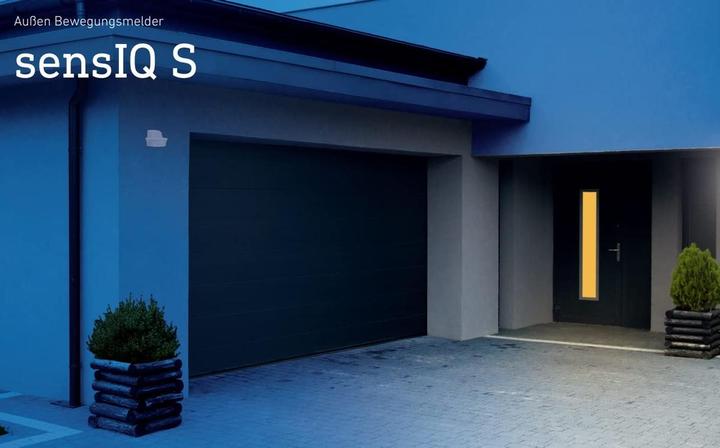

The evolution of perfection. The sensIQ S is as flawless as its larger counterpart. Suitable for both outdoor and indoor use, ideal for house entrances, loading ramps, up to 5 m mounting height, 4-fold sensor system for optimal monitoring within a 3x100° detection angle, 20 m range (tangential), precise range adjustment in 3 independent directions. Remote control and corner wall mount included.
EAN: 4007841059613.
type of sensor | IR |
mounting style | Finery |
Motion sensor type | Motion sensor |
Exact colour description | White RAL number (similar) :9010 |
coverage angles | 300° |
Range | 20 m |
Item number | 6057504 |
Manufacturer | Steinel |
Category | Motion sensors |
Manufacturer no. | ST 004064 |
Release date | 22.12.2016 |
Colour | White |
Exact colour description | White RAL number (similar) :9010 |
Material group | Plastic |
Material | Plastic |
Motion sensor type | Motion sensor |
Application range | Indoor |
type of sensor | IR |
coverage angles | 300° |
Range | 20 m |
Protection type (IP code) | IP54 |
mounting style | Finery |
Smart Home | Compatible |
Requires Smart Home Hub | No |
Transmission type | Funk |
Control type | Remote control |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Motion detector bus KNX AP ws 300° v90° 059613 |
Length | 1.50 cm |
Width | 11.40 cm |
Height | 7.40 cm |
Length | 16 cm |
Width | 15 cm |
Height | 10 cm |
Weight | 500 g |
