Steinel Is 1

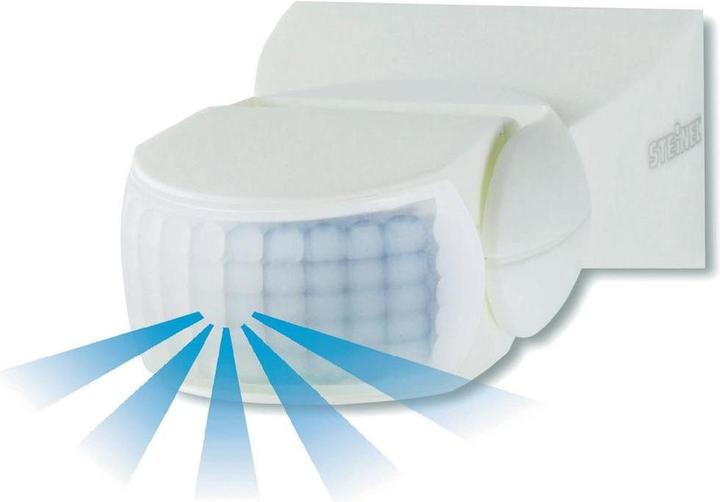

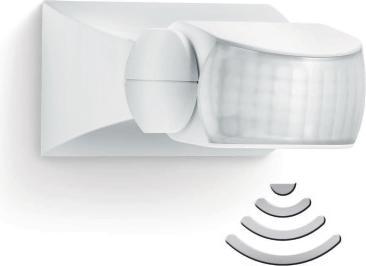

Steinel Infrared Motion Sensor IS 1

White infrared motion sensor suitable for both outdoor and indoor use. Switch capacity of up to 500 W, with a detection range of 120° and a range of up to 10 m. The sensor can be mounted on the wall or ceiling.

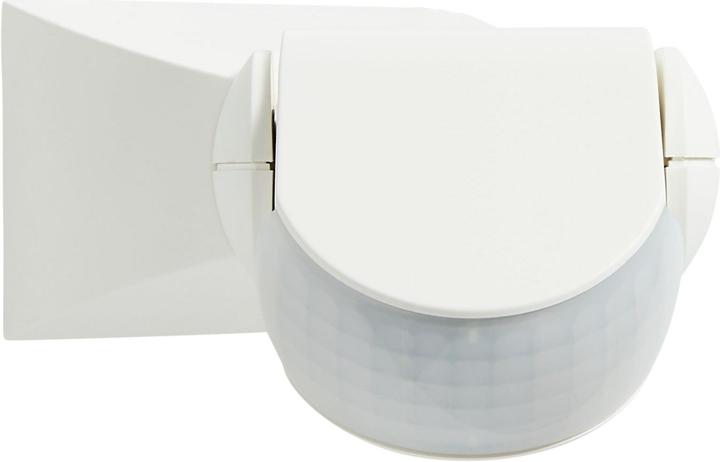

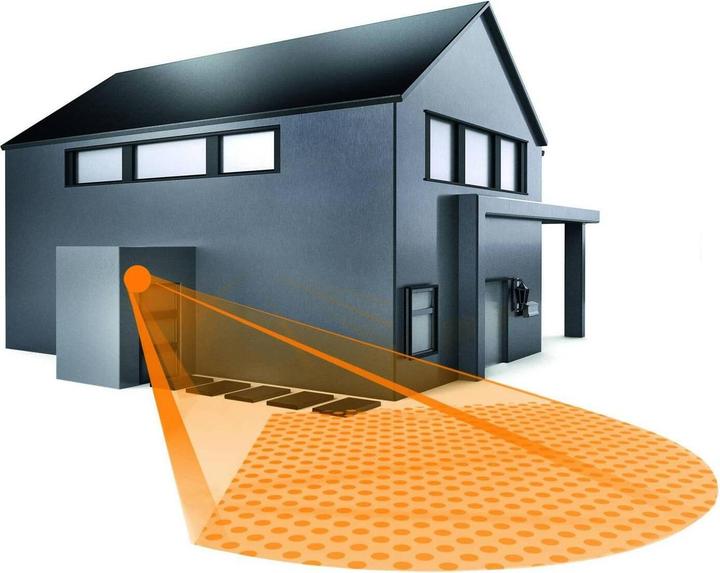

The IS 1 infrared motion sensor combines modern sensor technology with a discreet design at an affordable price. You can individually adjust the 120° detection range thanks to the horizontally adjustable sensor lens that tilts by 30° and vertically by 180°. If desired, the detection range can be limited using the included cover caps.

Easy installation: The settings for time and twilight threshold are made via an easily accessible rotary knob. The spacious and clearly arranged connection area makes wiring and wall or ceiling mounting straightforward. The supply line can be installed on the surface or flush.

Additional information:

• Color: White
• Switch capacity: up to 500 W
• Dimensions: 80 mm (W) x 50 mm (H) x 120 mm (D)
• Detection angle: 120°
• Detection range: 10 m
• Sensor type: Passive infrared
• Time setting: 8 sec. - 35 min.

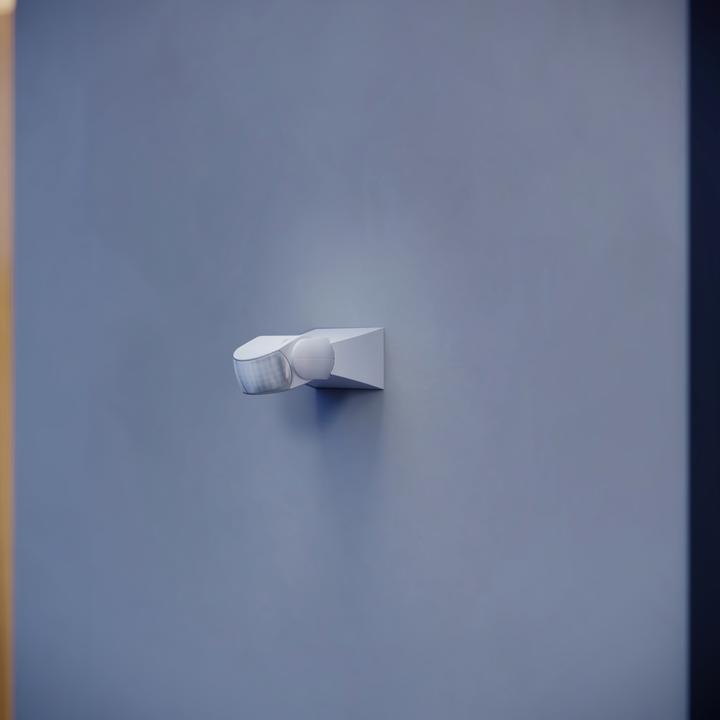

• Mounting: Wall, ceiling
• Outdoor use: Yes
• Protection class: IP54
• Input voltage: 230 V.
