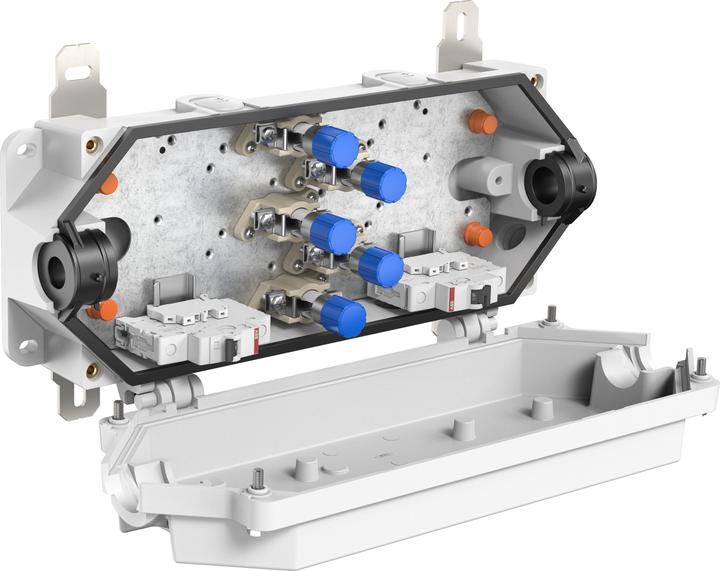

Spelsberg Junction box

Spelsberg junction box Rapid-Box 16q 2x3 2F

Manufacturer: Spelsberg
Designation: Junction box
Type: Rapid-Box 16q 2x3 2F
Max. conductor cross-section: 16 mm²
Fitting: Terminal
Shape: Rectangular
Mounting type: Wall/ceiling mounting
Mounting in the ground: No
Mounting under water: No
Entry from the rear: No
Length: 447 mm
Width: 190 mm
Depth: 105 mm
Bayable: Yes
Number of entries: 7
Type of housing feed-through: Other
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour: Orange
Protection class (IP): IP66
Cover version: Other
Transparent cover: No
Cover fixing: Screwed
Pourable: No
Supplied with potting compound: No
Sealable: No
Rated insulation voltage Ui: 400 V
Functional integrity: Without
With shielding: No
Weatherproof: Yes
Operating temperature: -25 to 40 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without

Further details: Junction box with protection class IP66/IP67, Ui=400V AC, M25 (5 lateral), external fixing points, for installations in industrial environments and tunnels, pressure-suction-tight according to Gotthard directive. Halogen-free enclosure made of special Duroplast, terminals made of high-temperature resistant special ceramic. External fixing lugs and cover screws made of stainless steel 1.4571, grey. Feed-through: 5-pole terminal for uncut conductors, clamping range for uncut conductors 2.5 mm² to 25 mm², clamping range for cut conductors 2.5 mm² to 16 mm², rated current 63A. Fused branch 4-pole up to 6 mm², fuse protection by 2 x circuit breaker single-pole B10, pre-wired, sealing range main cable: 17-22 mm (other sealing ranges on request). Dimensions: 190 x 447 x 105 mm. Accessories included: 2 pieces cable gland M25, sealing range 9-16 mm; 4 pieces screw plugs M25.
