Spelsberg Junction box

Spelsberg junction box Abox XT SL 2.5qmm

Manufacturer: Spelsberg
Designation: Junction box with connection terminals
Type: Abox XT SL 2.5qmm
Max. conductor cross-section: 2.5 mm²
Fitting: Terminal
Shape: Rectangular
Mounting type: Wall/ceiling mounting
Mounting in the ground: Yes
Mounting under water: No
Entry from behind: Yes
Length: 82 mm
Width: 82 mm
Depth: 52 mm
Bayable: No
Number of entries: 8
Type of housing feed-through: Pre-stamped
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP68
Cover design: Other
Transparent cover: No
Cover fixing: Screwed
Pourable: Yes
Supplied with potting compound: Yes
Sealable: Yes
Rated insulation voltage Ui: 450 V
Functional integrity: Without
With shielding: No
Weatherproof: Yes
Operating temperature: -35 to 80 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without

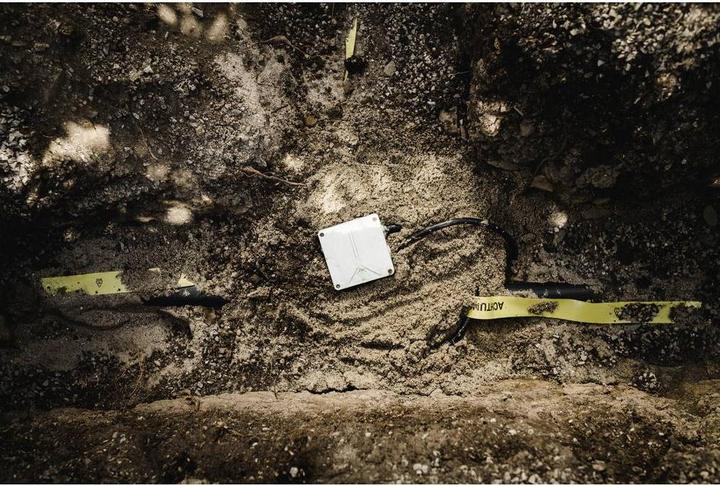

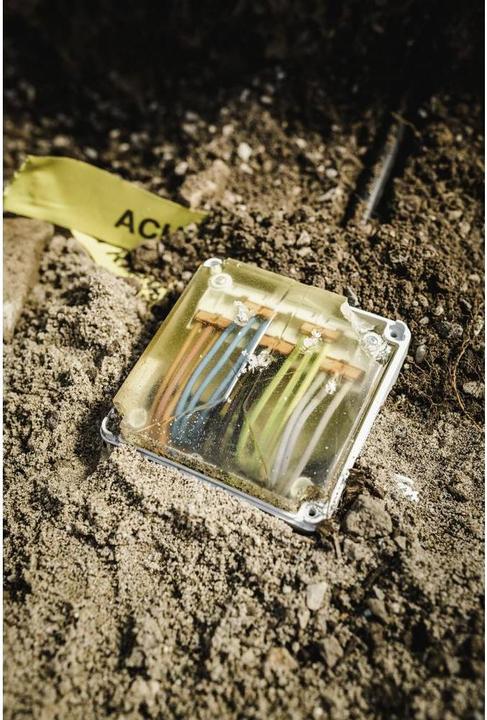

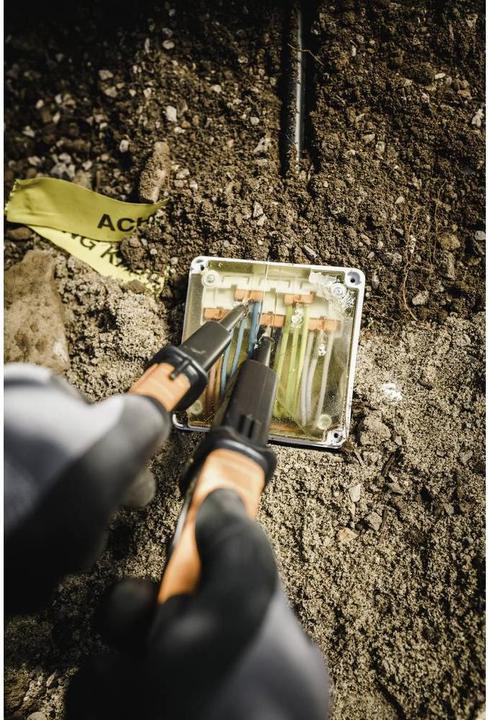

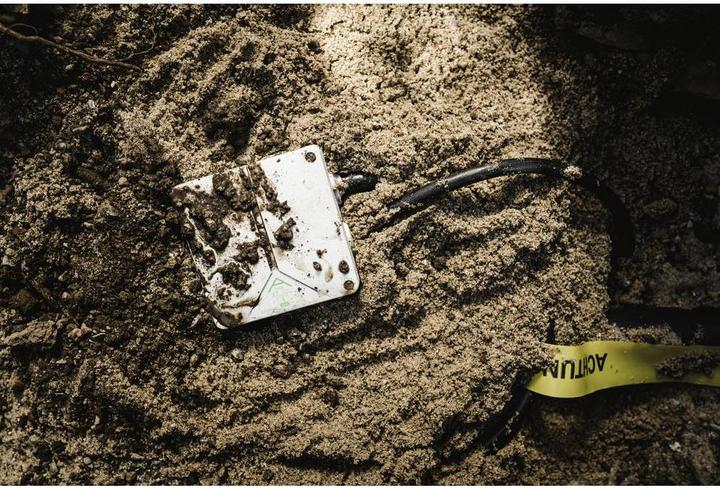

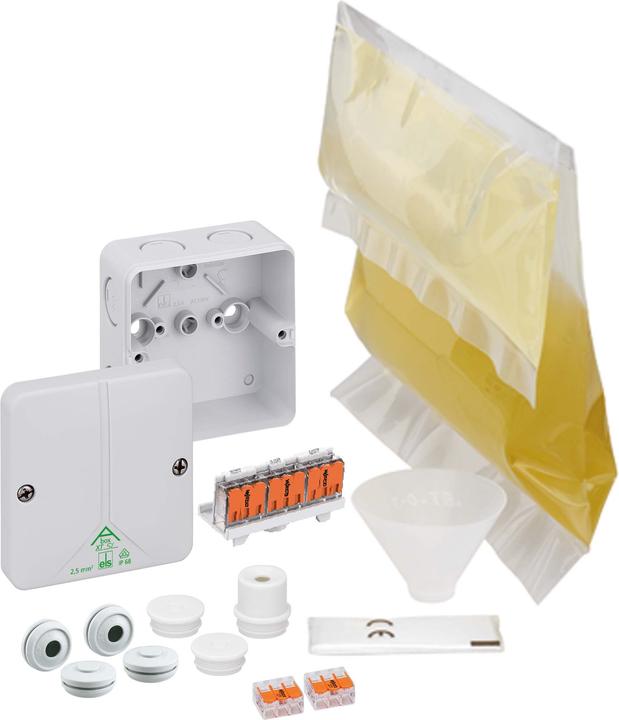

Junction box, industrial quality certified according to DIN VDE V 0606-22-100, with connection terminals Wago 221, for potting, weatherproof and impact resistant, for installation in flooded areas and in the ground without live loads, Ui=450V, with pre-stampings, with double membrane socket M20, sealing range 7-12 mm, with potting resin bag 250 ml (label-free), funnel, ventilation plug and disposable gloves.

Attention: Observe expiration date of casting resin bag, gray, with 5 screwless 3-conductor terminals type Wago 221-413, max. rated cross-section according to DIN EN 60998: 2.5 mm², clampable cross-sections per pole: 3 x 0.2 to 2.5 mm² rigid and 3 x 0.14 to 2.5 mm² flexible.
