Product details

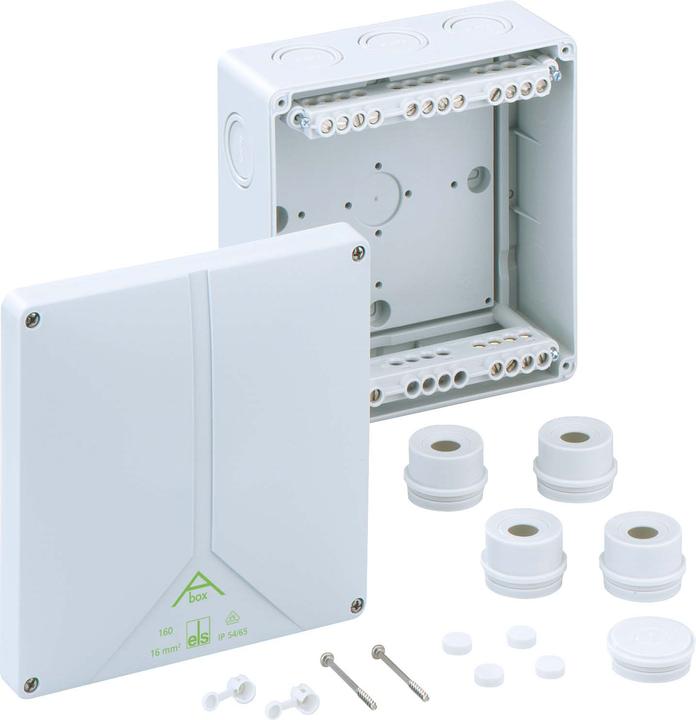

Spelsberg junction box gr ABOX 160-16qmm Manufacturer: Spelsberg Designation: junction box gr 690V M40 D=30mm IP54 Type: ABOX 160-16qmm Max. Conductor cross-section: 16 mm² Equipment: terminal Shape: rectangular Mounting type: wall/ceiling mounting Mounting in the ground: no Mounting under water: no Entry from the rear: yes Length: 180 mm Width: 180 mm Depth: 91 mm Bayable: no Number of entries: 12 Type of housing feed-through: pre-stamped Material: plastic Halogen-free: no Surface protection: untreated Color: grey Protection class (IP): IP65 Cover design: other Transparent cover: no Cover fixing: screwed Pourable: yes Supplied with potting compound: no Sealable: yes Rated insulation voltage Ui: 690 V Functional integrity: without With shielding: no Weatherproof: no Operating temperature: -25..40 °C Explosion-proof version: no For Ex-zone gas: without For Ex-zone dust: withoutSpelsberg junction box gr ABOX 160-16qmm: more detailsJunction box according to DIN EN 60670 (VDE 0606), Ui=690V, with IP54 mounting spigot, M40, sealing range 17-30mm, with sealing plug M40, with sealing set, grey, with screw terminals in high position, 5-pole-16qmm (4 x 6q / 4 x 10q / 4 x 16q) , EAN: 4013902110179

Key specifications

Junction box type
Junction box
Protection type (IP code)
IP65
Height
91 mm
Width
180 mm
Length
180 mm

General information

Item number
18454962
Manufacturer
Spelsberg
Category
Junction box
Manufacturer no.
81641001
Release date
24.1.2022

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Junction box
mounting style
Adhesive, Duvet
Area of use
Inside

Safety

Protection type (IP code)
IP65

Origin

Country of origin
China

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
91 mm
Width
180 mm
Length
180 mm

Package dimensions

Length
18 cm
Width
9 cm
Height
18 cm
Weight
640 g
