Name: GEOS-S 3040-18-o switch cabinet 400 x 300 x 180 polycarbonate 1pce.
Brand: Spelsberg
SKU: 22933709
Price: 172 CHF
Availability: InStock

isSSR

lazyLoadRecommender

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Spelsberg

Spelsberg Switch Cabinet GEOS-S 3040-18-O
Manufacturer: Spelsberg
Designation: Switch cabinet
Type: GEOS-S 3040-18-O
Width: 300 mm
Height: 400 mm
Depth: 180 mm
Material: Plastic
Material grade: Other
Finish: Other
Colour: Grey
RAL number: 7035
Free-standing: No
Floor-standing wall model: No
Suitable for wall mounting: Yes
Corner model: No
Intermediate mounting: No
Can be coupled: No
With mounting plate: No
Mounting plate depth-adjustable: No
Suitable for wall mounting: No
Pole mounting: Yes
Number of doors: 1
Number of locks: 1
Suitable for metric mounting: No
Suitable for outdoor installation: Yes
Pitched roof: No
EMC version: No
With viewing door: No
With ventilation door: No
With rear door: No
Impact resistance: IK09
Degree of protection (IP): IP66
Degree of protection (NEMA): 4X
Heat loss capacity (Delta T 20 K) according to IEC/TR 60890: 26.8 W
Max. permissible load of enclosure/cabinet: 1
Max. permissible load on enclosure/cabinet to IEC 62208: 177 N
Max. permissible load on door(s) to IEC 62208: 177 N
Max. permissible load on the door(s) to IEC 62208: 40 N

Spelsberg GEOS-S 3040-18-O enclosure
Further details: Enclosure industrial quality, suitable for installation in harsh environments and unprotected outdoor areas. Box and frame: glass-fibre reinforced polycarbonate, grey, similar to RAL 7035; door: polycarbonate. Rotary bolt lock with 3 mm double bar insert (exchangeable) according to DIN 43668, with grey door.
Dimensions: 300 x 400 x 180 mm
EAN: 4013902640454.

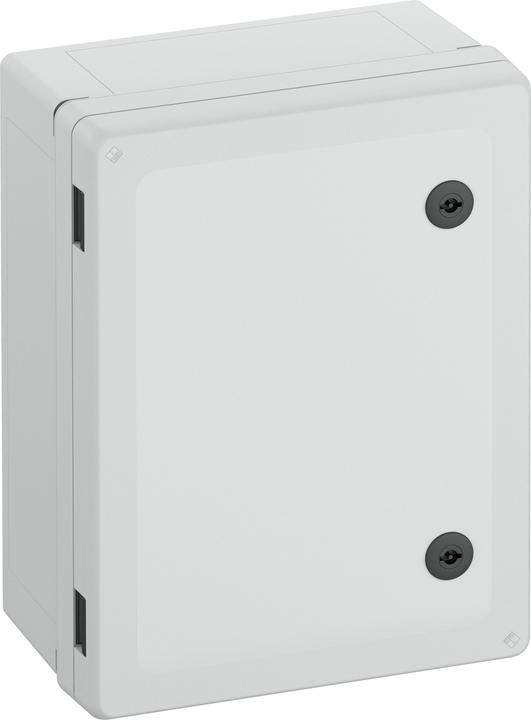

Actual product image Spelsberg GEOS-S 3040-18-o switch cabinet 400 x 300 x 180 polycarbonate 1pce.
